Accurate Lead 1mm Diameter 6mm Ball Screw

Basic Info

Model No.: MIA0601

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

The operating principle of a ball screw is based on rolling friction. When a rotary or linear motion is applied to the threaded shaft, the steel balls roll along the grooves between the shaft and the nut. Due to the rolling friction of the steel balls, the linear motion ball screw assembly is low-friction, resulting in high ball rotation efficiency. The balls smoothly transmit the input motion to the nut, enabling precise linear or rotary motion.

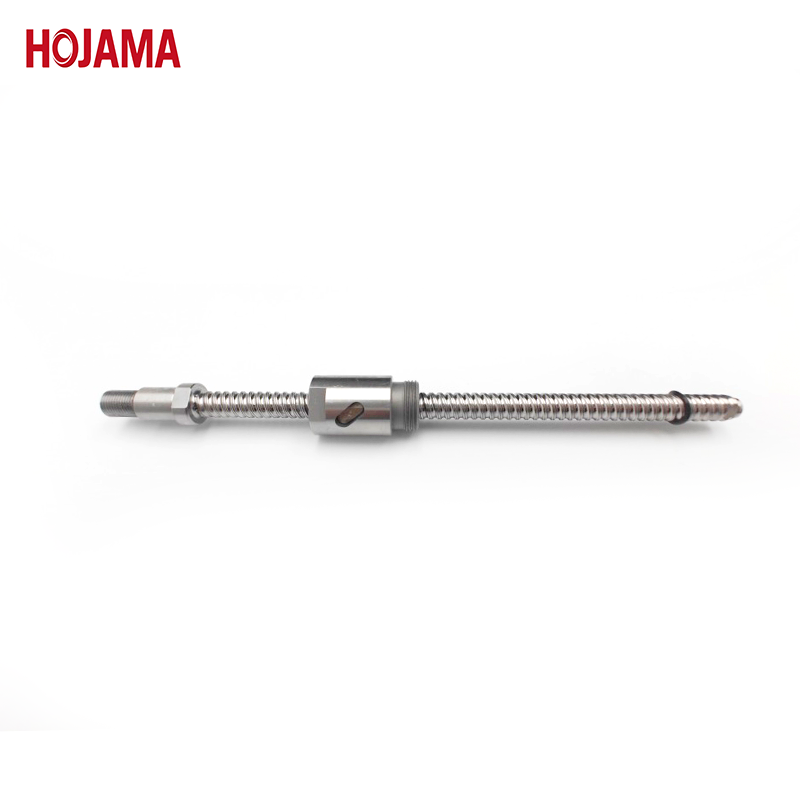

MIA0601--Hojama ball system

Diameter: 6mm Diameter Ball Screw

Lead/Pitch: 1mm

Nut Type: Standard Nut

Cycle Mode: Internal Deflector

Nut Shape: Round Nut with triangular thread

Selection of Ball Screw Specifications and Models

1. Determine the positioning accuracy.

2. Determine the ball screw lead based on the motor and speed requirements.

3. Check the nut size to determine the stroke and related screw shaft end data.

4. Determine the average axial force and rotational speed based on the load and speed distribution (acceleration and deceleration).

5. Determine the preload based on the average axial force.

6. Determine the dynamic rated load based on the expected service life, axial load, and rotational speed.

7. Determine the ball screw outer diameter and nut type based on the basic dynamic rated load, lead, critical speed, and DmN value limit.

Advantages of MIA0601 Miniature Ball Screws:

1. Smoother Operation

The steel balls, in linear actuators, are used to transmit motion, significantly reducing friction and providing smoother operation.

2. High Precision and Accuracy

Our linear ball screw assemblies are available in C3 or C5 precision grade. The high-Precision Mini Ball Screw ensures a precise response between the balls and the screw shaft, achieving highly reliable and repeatable positioning.

3. High Efficiency

The ball screw is more efficient, achieving over 90% efficiency, which greatly enhances performance by reducing energy loss and improving overall effectiveness.
