Model No.: MIF0601
Brand: HOJAMA
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump
Processing Technology: Milled Thread
Place Of Origin: China
Packaging: Wooden box
Productivity: 30000 sets/month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 30000 sets/month
Certificate: ISO9001:2015
Port: Shanghai,Dalian,Zhoushan

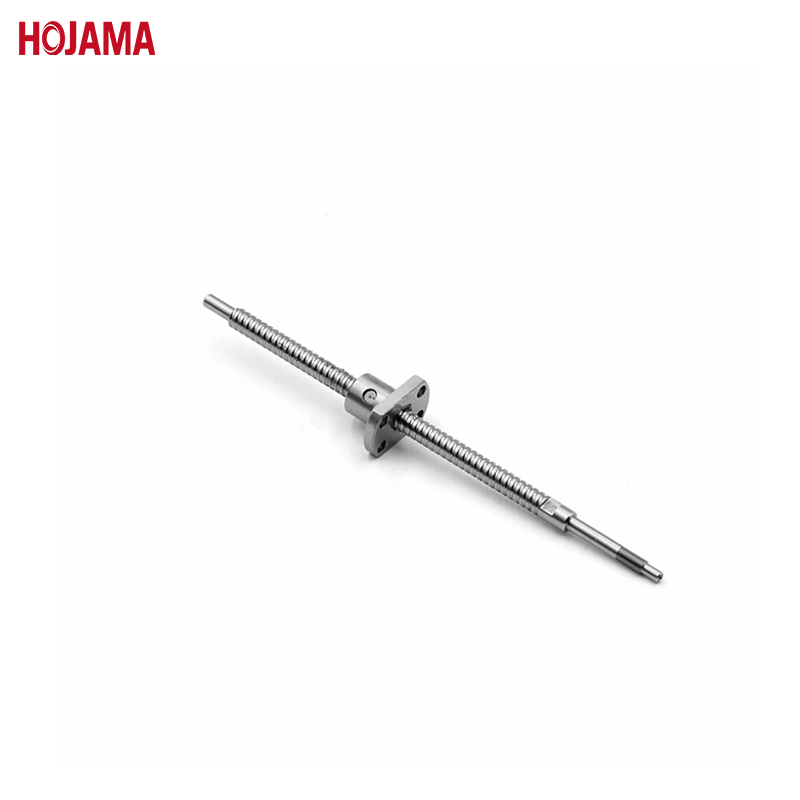

A high-precision miniature ball screw consists of a screw shaft, ball nut, and steel balls. It effectively converts rotary motion into linear motion. Known for its high precision, reversibility, and efficiency, our low-friction bidirectional ball screw is a popular choice in industrial machinery and precision instruments.
Thread type: Standard Nut
Cycle Mode: Floating deflector
Nut shape: Round nut with flange
a. During machine design and installation, the axial load acting on the ball screw assembly should pass through the screw axis to avoid radial forces and overturning moments. Radial forces and overturning moments can cause the screw to bend, resulting in overload on some steel balls, which in turn leads to unbalanced transmission, reduced precision, and shortened service life.
b. For the support method of the ball screw assembly at both ends, it is advisable to adopt either the "fixed at both ends" or "fixed at one end and radially supported at the other end" type. It is recommended to use paired bearings with a large contact angle for the support bearings. The bearing blocks at both ends and the nut seat must be precisely adjusted to ensure their axes are aligned (i.e., "three points concentric"), with a coaxiality of grade 6 or 7 or higher.
1. CNC machine tools: precise and smooth motion control
2. Automation equipment: precise motion in robotics and assembly systems
3. Measuring instruments: precise positioning and low-friction measurement
4. Medical equipment: precise positioning in surgical robots and diagnostics
5. Aerospace: reliable motion control
6. Renewable Energy: precise adjustment of panel angles
HOJAMA Ball Screws are built on years of accumulated expertise. From materials and heat treatment to manufacturing, inspection, and shipping, each stage is controlled by a rigorous quality assurance system. And before you order, you need to know:
1. Sample prices are based on drawing specifications (we accept both CAD and 3D) and order quantity. Don't hesitate to get in touch with HOJAMA for details.
2. Delivery time is approximately 15-25 days. Please get in touch with HOJAMA for the exact time.
3. You are welcome to request samples for testing and evaluation.
Product Categories : Miniature Ball Screws > 6mm Diameter Ball Screw
