HOJAMA miniature ball screw assemblies, known for their high precision and low noise, play a crucial role in various industries.

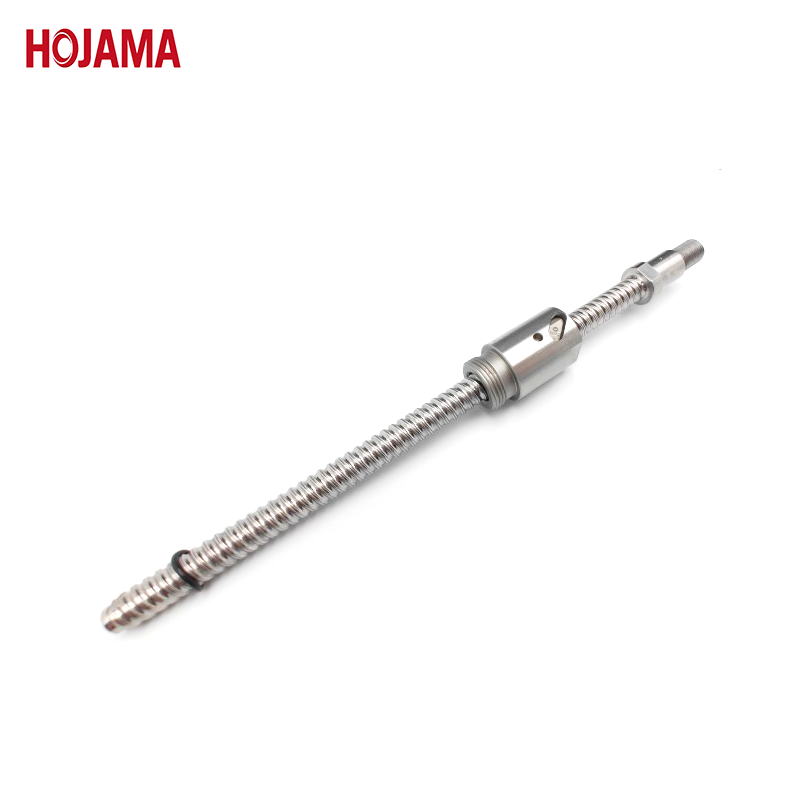

MIA0602--hojama linear motion screw

Type: Miniature Ball Screws

Diameter: 6mm Diameter Ball Screw

Lead/Pitch: 2mm

Nut Type: Standard Nut

Cycle Mode: Floating Deflector

Nut Shape: Round Nut with Triangular Thread

Accuracy Grade: C3/C5

What type of bearing should be selected when the axial thrust of a ball screw is excessively large?

Axial refers to the direction along the axis of the shaft, while radial, being perpendicular to the axial direction, is along the radius of the shaft. Therefore, the axial load on a bearing refers to the load generated in the direction of the bearing's axis. In layman's terms, it is the force that would push the inner ring of the bearing out of the outer ring.

Thrust bearings can withstand large axial forces. Among bearing types, the order of their ability to bear axial loads from smallest to largest is as follows: cylindrical roller bearings < ball bearings < tapered roller bearings < thrust bearings.

Selection of ball screw support bearings: Since the ballscrew kit mainly bears axial forces, thrust bearings are mostly used for support. Under the condition of the same size, the axial rigidity of thrust ball bearings is more than twice that of angular contact ball bearings and tapered roller bearings; the rigidity of thrust roller bearings is about twice that of thrust ball bearings. When the axial load is small, angular contact ball bearings can be used instead of thrust ball bearings, which can reduce the number of bearings.

Widely used in many scenes:

1. Medical Devices: Surgical instruments, diagnostic equipment, and rehabilitation aids.

2. Precision Instruments: Optical instruments, measurement devices, and semiconductor manufacturing equipment.

3. Automation Equipment: Assembly, handling, and inspection processes on production lines.

4. Aerospace: Satellite equipment and related technologies.

5. Machine Tools: Grinders, milling machines, and drills.

6. Automotive Industry: Robotic arms and assembly lines.

What Must Be Known：

1. The product price is primarily based on actual discussions, which is mainly influenced by the details provided in the drawings (CAD and 3D) and the quantity of the products.

2. The lead time ranges from 15 to 25 days.

3. HOJAMA samples can be provided to assess quality.
