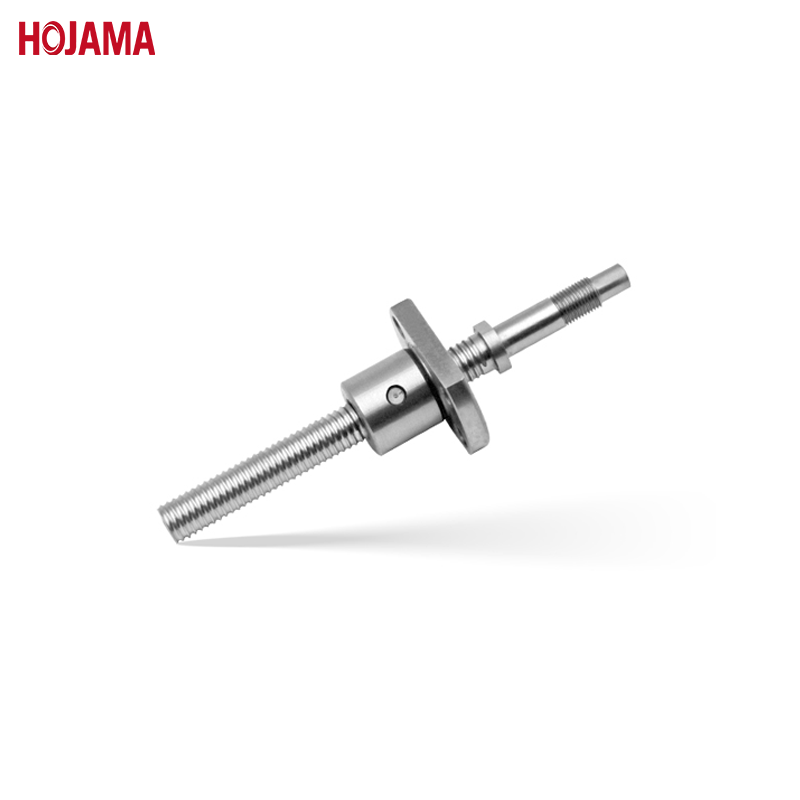

MIF0601C: A 6mm miniature ball screw whose lead is 1mm

Nut Type: Standard Nut

Cycle Mode: Internal Deflector

Nut Shape: Round Nut with Flange

 A micro ball screw kit is a type of ball screw with a compact size, suitable for application where space is liminted, including medical equipment, automation equipment, aerospace, etc.

 Main Advantages of Miniature Ball Screws:

1. High Precision

2. Compact Size

3. Low Friction

4. High Load Capacity

5. Long Service Life

6. Efficient Power Transmission

7. Reduced Noise

Analysis of Common Possibilities for Ball Screw Backlash

1. Improper selection of bearings

2. Improper installation of bearings

3. No preload or insufficient preload

4. Insufficient rigidity of the nut housing or bearing housing

5. Improper assembly of the nut housing or bearing housing

6. Out-of-tolerance parallelism or flatness of the support seat surface

7. Excessive torsional displacement

8. Improper coupling between the motor and the ball screw

Helpful Hints for you:

1. The final price of the product depends on the drawing parameters (CAD or 3D) and the quantity ordered.

2. Lead time: 15-25 days. It will vary based on the specifications of the ordered products.

3. Samples are available for your reference.
