6mm Custom Ball Screw with Nut Steel Balls

Basic Info

Model No.: GEO0608

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

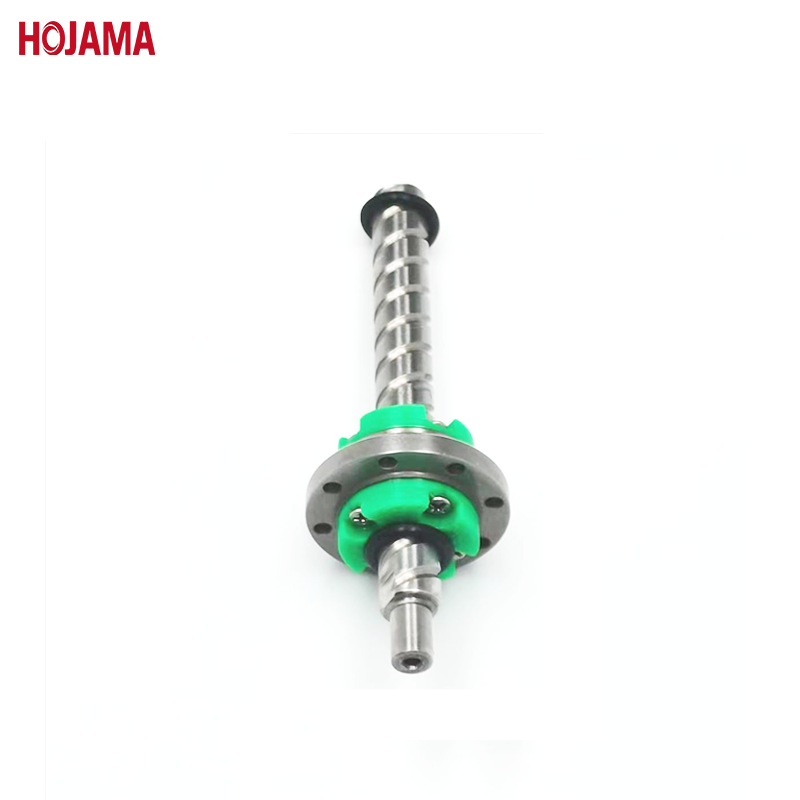

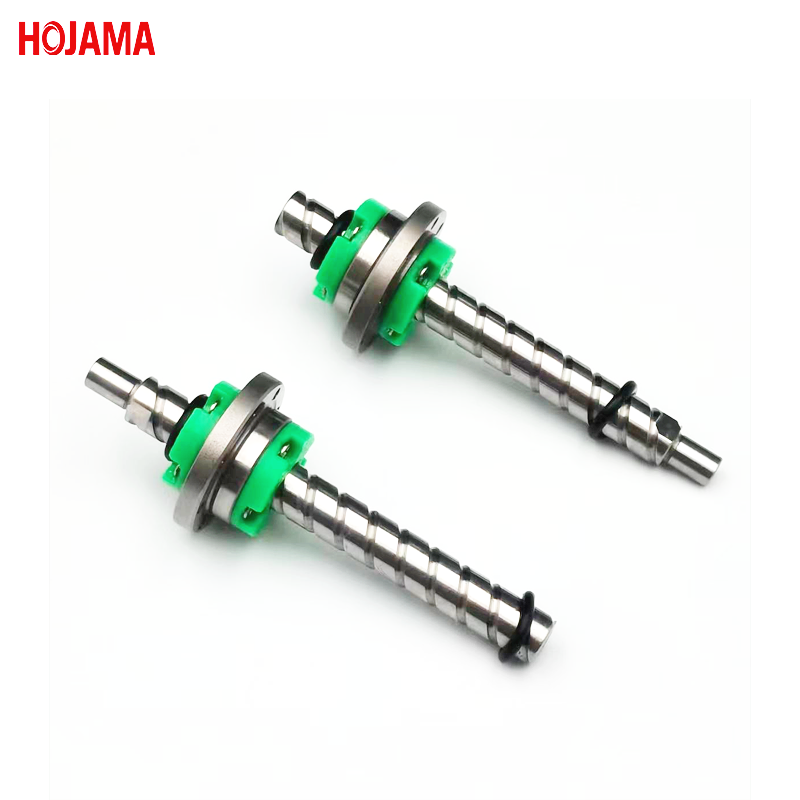

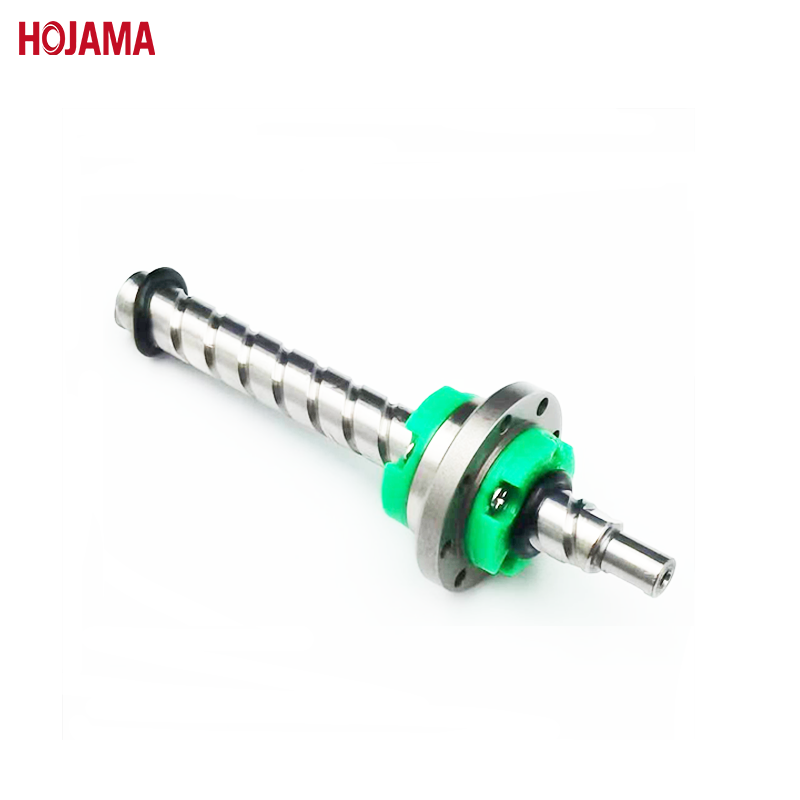

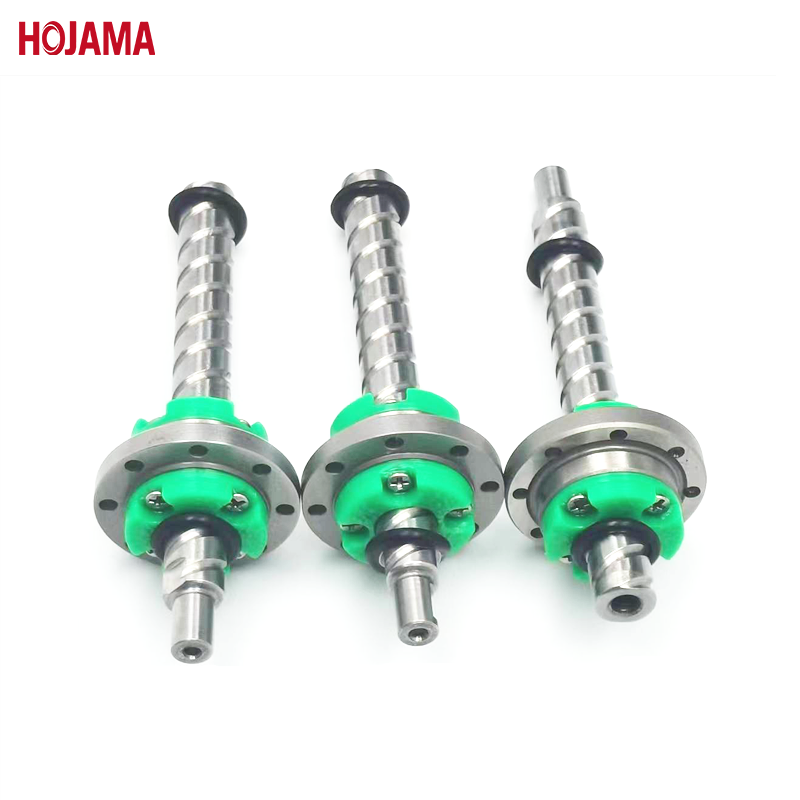

GEO0608——6mm Diameter Ball Screw

The GEO0608, the 6mm diameter miniature ball screw with an 8mm lead, is categorized as a high lead ball screw. These miniature ball screw assemblies feature a non-standard round nut with a flange design and an end cover deflector, without milling flats. Our mini-size ball screws are available in accuracy grades C3 or C5, with customizable shaft ends to suit your specifications. They can be customized with various materials, and bearing and stainless steel are recommended. Although the default configuration is right-hand, our precision ball screw kit can be customized for a left-hand design if required.

Mini Ball Screw: Ideal for a broad range of uses

1. Robotics

For precise linear motion and positioning in robotic arms and automated systems.

2. Medical Devices

In equipment like surgical tables, imaging systems, and diagnostic machines.

3. CNC Machines

For driving the motion of tools and workpieces.

4. Aerospace

In small actuators and control mechanisms for aircraft and spacecraft.

5. Electronics

For adjusting and positioning components in devices.

The Reason of Ball Screw Heating

1. Frictional Heating: Excessive preload and lubrication failure cause the friction coefficient of the screw nut to soar by 300%.

2. Violent Driving: 30% overload operation makes the motor torque convert into heat energy, "frying and roasting" the linear ball screw.

3. Heat Dissipation Dilemma: Enclosed guide covers combined with high workshop temperatures lead to heat accumulation, forming a "sauna room".

4. Material Defects: The thermal expansion coefficient of ordinary steel is as high as 11.7×10⁻⁶/℃, making it a "traitor" to precision.

5. Design Flaws: Fixed installation at both ends locks the thermal stress inside the ball screw kit.

Notes:

1. The price of the Miniature Ball Screws listed on our website is for reference purposes only. For the actual price, please consult HOJAMA.

2. Lead time: 15-25 days

3. Hojama is good with ball screw manufacturing, including miniature ball screws, Precision Ball Screws, Rolled Ball Screws and bidirectional ball screws.
