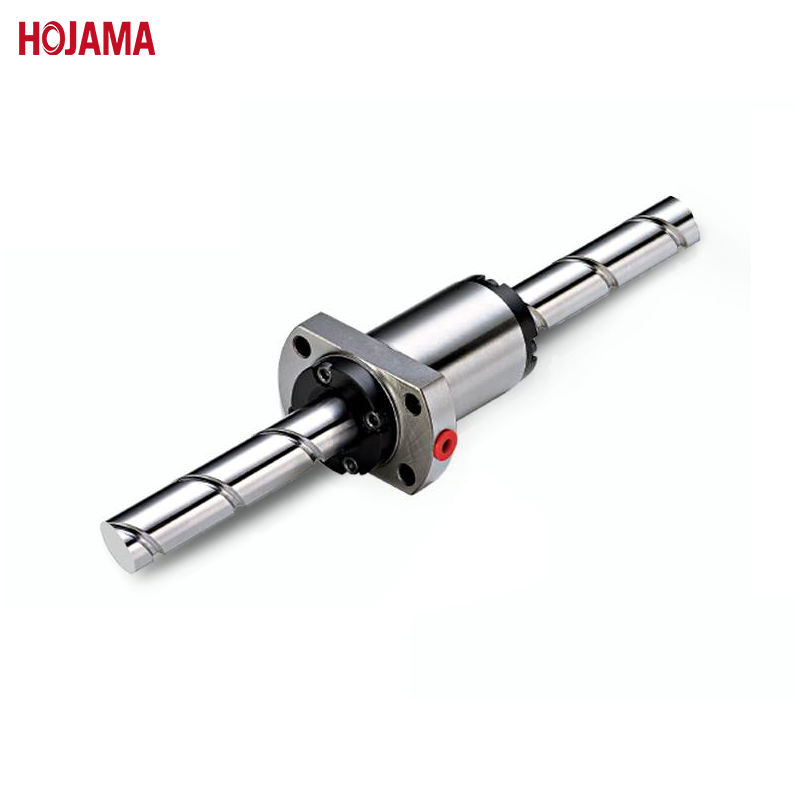

Miniature 0606 Ball Screw for CNC Machine

Basic Info

Model No.: MEF0606

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

A miniature ball screw works by rolling balls between the screw shaft and nut to covert the rotatory motion into linear motion, reducing friction and boosting efficiency and response. These compact size precision ball screw kits are suitable for the application requirs both high precision and limited space.

MEF0606: 6mm Diameter Ball Screw

Lead/Pitch: 6mm

Nut Type: Standard Nut

Cycle Mode: End Cover Return

Nut Shape: Round Nut with Flange

Analysis of Ball Screw Wear:

1. If foreign objects enter the nut, they will mix with the lubricating oil, causing blockage of the rolling grooves and resulting in damage.

2. If impurities in the lubricating oil are not filtered out properly and get mixed into the nut, or if the lubrication method is improper, the selected lubricant is incorrect or has deteriorated, wear will occur.

3. Condensation caused by temperature changes or corrosive substances from additives in the lubricant can also cause rust, which in turn leads to wear.

The above situations will cause roughness on the working surface of the ball screw system and an increase in clearance, ultimately failing the screw. However, as long as it is a metal part, its normal wear is inevitable. Normal wear occurs uniformly and slowly. By paying attention to daily maintenance, wear can be reduced, and the service life can be extended.

Advantages of Hojama Miniature Ball Screws:

1. Exceptional robustness

The rolling contact surfaces of the steel balls are heat-treated and precision ground.

2. optimal coordination

Multiple smooth and responsive Industrial Ball Screws ensure effective synchronization.

3. easy to maintain

The high-efficiency ball screw needs minimal maintenance in the later using.

4. No backlash and high rigidity

Optimize the contact between steel balls and the gothic-arch-shaped groove of the ball screw. Eliminate backlash by applying proper preload to enhance rigidity.
