Diameter 6mm Lead 1mm Square Nut Ball Screw

Basic Info

Model No.: MIS0601

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

A ballscrew is a transmission mechanical component in which steel balls move between the nut and the screw, converting the sliding contact of traditional screws into rolling contact, and then converting the rotational motion of the steel balls inside the nut into linear motion.

Ballscrews feature high positioning accuracy, long service life, low pollution, and the ability to perform high-speed forward and reverse transmission as well as variable transmission. Thanks to these characteristics, high-precision ballscrews have become one of the important components in the positioning and measurement systems of the precision technology industry and the precision machinery industry in recent years.

Miniature Ball Screws are precision mechanical components with a diameter of 4 to 16 cm. It consists of a micro-screw shaft, nut, and circulating steel balls, converting rotary motion into linear motion and enabling efficient operation.

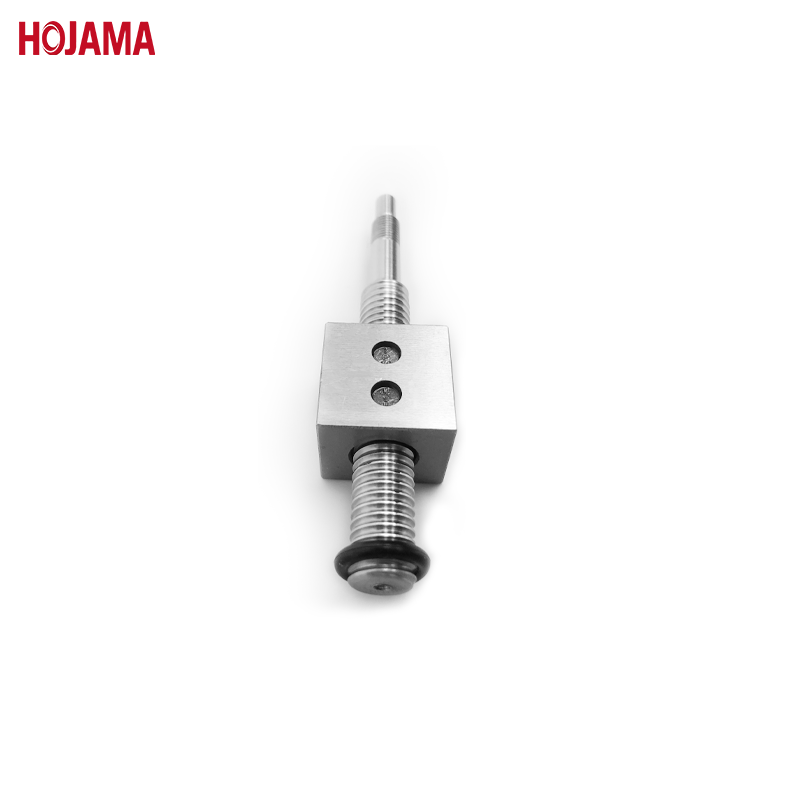

MIS0601 Miniature Ball Screw: 6mm Diameter Ball Screw

Lead/Pitch: 1mm

Nut Type: 6mm

Cycle Mode: Floating Deflector

Nut Shape: Square Nut

a wide range of high-precision applications:

1. High accuracy

2. Low friction

3. Compact size

4. High load capacity

5. Wide range of use

Countermeasures for Temperature Rise of Ball Screw Assemblies

(1) Controlling Heat Generation

1. Do not excessive preload the ball screws and support bearings.

2. Correctly select and replenish appropriate lubricants.

3. Reduce the rotational speed by increasing the lead of the ball screw.

(2) Implementing Forced Cooling

1. Use a hollow screw shaft or nut to cool the ball screw, with cooling liquid flowing through it.

2. Cool the periphery of the screw shaft with lubricating oil, air, etc.

Notice:

1. The final price of the product will be set according to the actual price at the time of purchase.

2. Lead Time: 15-25 days, depending on actual circumstances.

3. Samples are available on request and can be provided to you for evaluation.

HOJAMA is committed to providing you with superior-quality ball screw products and services, if you have any questions or need technical support, please feel free to contact us!
