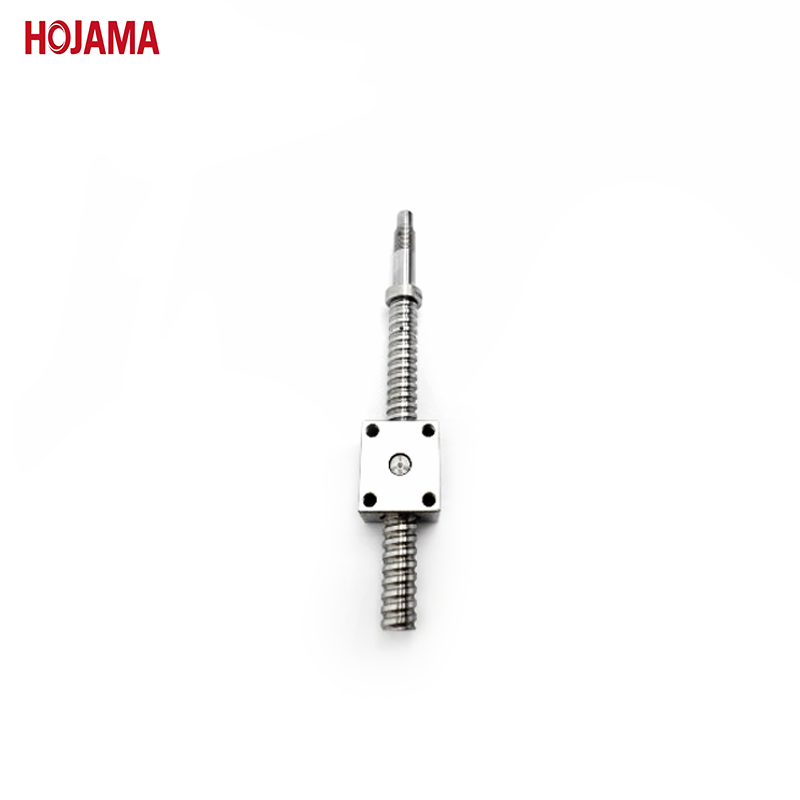

Diameter 8mm Lead 2mm Ballscrew with Square Nut

Basic Info

Model No.: MIS0802B

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

Hojama mini size bal screw

The MIS0802B miniature ball screw, the 8mm Diameter Ball Screw, is available in accuracy grades C3 and C5. Our high-speed Miniature Ball Screws are designed to provide zero axial play and an efficiency up to 96% or higher. Additionally, the shaft ends of ball screw kits can be customized to your specifications. These ball screws, coming with a standard square nut and a round floating deflector, can be designed for either right hand thread or left hand thread according to your needs.

Advantages of Hojama mini ball screw:

1. Backlash elimination

The preload maintains constant contact between the ball screw and the nut, effectively eliminating play or backlash.

2. High stiffness

The ballscrews offer high rigidity and a long service life thanks to the high-quality materials and surface treatment.

3. Low starting torque

Compared to conventional Lead Screws, micro ball screws require 30% or less torque to convert linear motion into rotary motion.

4. Smooth running

Because of low friction, the Preloaded Ball Screw operates smoothly during the transmission.

Introduction to Ball Screw Repair Services

1. Cleaning, Lubrication, and Clearance Adjustment

Clean the ball screw assembly thoroughly.

Apply appropriate lubricating grease.

Adjust the clearance between the screw and ball nut to ensure optimal operation.

2. Replacement of Rolling Elements (Steel Balls)

Replace the steel balls that serve as rolling elements between the ball screw and nut.

3. Ball Nut Replacement

Replace the entire ball nut assembly when it is excessively worn or damaged.

4. Replacement of Ball Nut Recirculation Components

Replace recirculation tubes or reversers, which are critical for guiding steel balls through the nut's circulation path.

5. Grinding of Worn Raceways

Precision grinding of the worn raceways on both the high-precision ball screw and ball nut to restore the required operational accuracy specified by the user.
