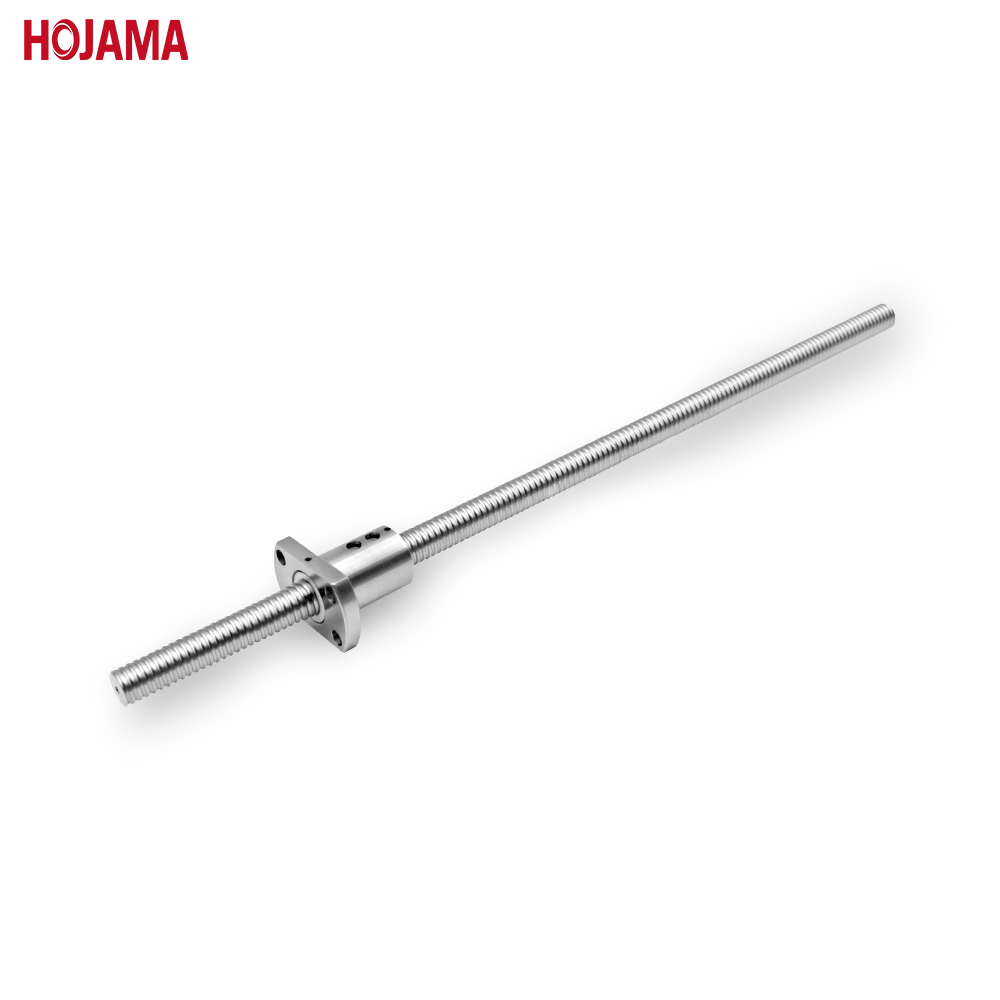

Hojama 8mm ball screw---High-precision ball screw assembly

The 8mm Diameter Ball Screw, precise-ground and smooth-transmission, is an ideal solution for converting rotational motion into linear movement with minimal friction. This miniature ball screw, crafted from durable bearing or stainless steel, is extensively suitable for a range of applications including electronic machinery, robotics, measuring instruments, medical equipment, and more.

MIF0802.5:

1. ball screw features:

1) 8mm diameter/2.5mm lead

2) standard nut

3) round internal deflector

4) round nut with flange

5) customized shaft end

6) 1xball screw shaft+1xball screw nut

2. Miniature Ball Screws advantage:

1) Small size

2) Long service time

3) Low friction

4) Low operation noise

Relationship between Preload and Ball Screw Selection​

When ordering a ball screw, the required preload can be informed to the manufacturer based on the force conditions of the CNC ball screw, so that the manufacturer can apply the preload according to the given value. If the preload is properly selected, the linear ball screw kit can operate in an optimal state. An increase in preload will enhance the contact stiffness between the balls and the raceways, and also improve the transmission accuracy. However, an excessively large preload will lead to an increase in contact stress between the balls and the raceways, thereby reducing the service life and transmission efficiency.​

The magnitude of the preload for the high-precision ball screw should be such that there is no axial clearance in the screw-nut assembly when it is subjected to the maximum axial working load. It is required that the preload value should be greater than one-third of the maximum axial working load. Since the double-nut mechanism will cause an additional friction torque after preloading, the issues of efficiency and service life must also be taken into consideration.

3. Notice:

1) Do not remove the ball screw nut from the ball screw, because it is matched, or it will be difficult to install it again

2) The product's actual price depends on the quantity ordered and the specific parameters of the product.

3）The delivery time for the product will be based on the actual delivery schedule discussed with HOJAMA.

4）Please contact HOJAMA with CAD or 3D specifications for more details.
