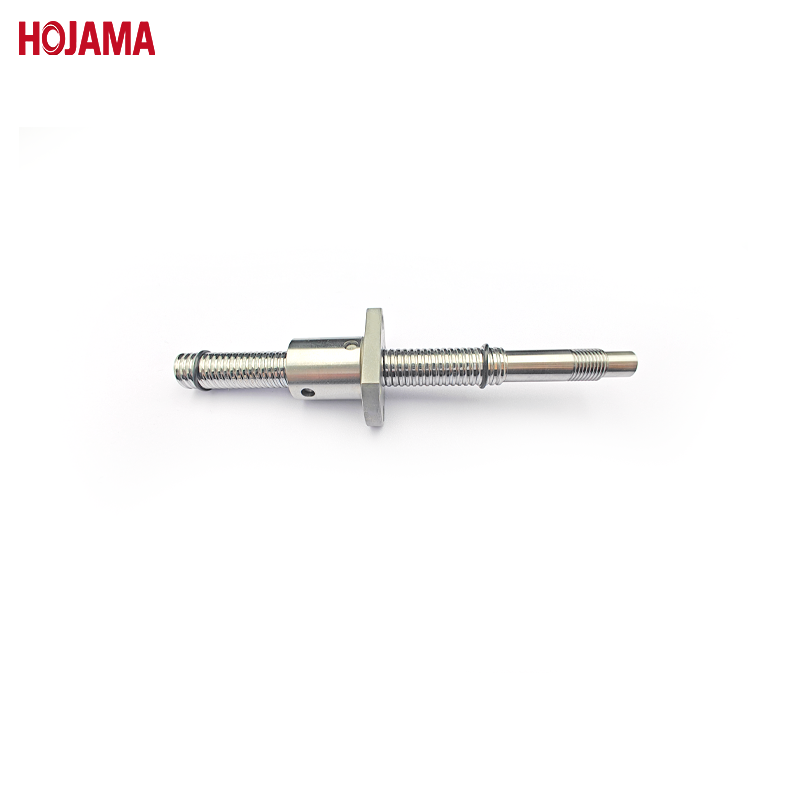

MIF0802C--Hojama low-friction 8mm ball screw

Package includes: Ball screw kit

Ball screw model: MIF0802C

Ball Screw Metal nut: Standard round flange nut

Ball Screw Cycle Mode: Internal Deflector

MIF0802C is an 8mm Diameter Ball Screw with a 2mm lead. This miniature ball screw utilizes rolling friction, resulting in a slower temperature rise during operation and high transmission efficiency. With over 90% efficiency, micro ballscrews provide effective and reliable motion transmission, making them ideal for precision applications. Mini-size ball screws are essential in automation for precise position control, used in robotic arms, CNC machines, and printing equipment. They are especially suitable for optical instruments, medical equipment, and electronics, ensuring precise movement and adjustment.

About Ball Screw Support Bearings:

1. Ball screw support bearings can achieve high precision, which are classified into: ordinary C7 grade, ground C5 grade, and high-grade C3 grade. They are custom-made for screws of different precisions and can be matched with corresponding precision support bearings according to the ball screw precision.

2. Do not disassemble the support unit.

3. When inserting the screw shaft into the support unit, be careful not to flip the flange ball of the oil seal gasket.

 4. When pressing the cushion block with the hexagon socket set screw, to prevent loosening, apply adhesive to the hexagon socket set screw before tightening it.

ATTENTION:

1. Please contact HOJAMA with the product specification(CAD or 3D) and quantity for the actual price and lead time(about 15-25 days).

2. HOJAMA will provide the sample, and you can judge its exceptional precision and reliability.

3. We've assembled the Miniature Ball Screws for you. Please avoid removing the nut from the screw as it can cause the balls to fall out, rendering the entire assembly ineffective.
