0801 Ball and Screw for CNC Machine

Basic Info

Model No.: MIS0801B

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

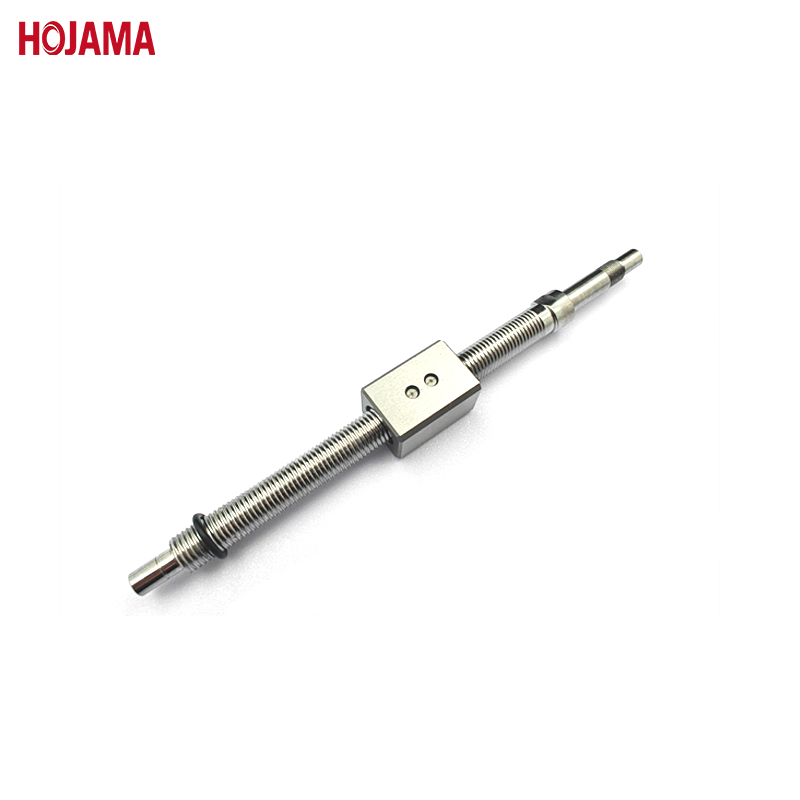

MIS0801B ballscrew--the 8mm Diameter Ball Screw, is part of the Internal Return Series and is widely used in industrial applications.

Mini Ball Screw Feature：

1. Space-saving internal floating deflector return design

2. Square ball screw nut

3. Low friction force, compared to 1/3 of a trapezoidal screw

4. High accuracy grade: C5/C3

5. Micro feed with a tolerance of ±0.1μm

6. Zero backlash, high rigidity

Measurement of Runout Tolerance for Ball Screws:

1. Position both ends of the ball screw on the V-blocks or center seats of a runout tester via the centers or center holes, ensuring the ball screw can rotate freely and the reference axis remains stable.

2. Adjust the dial indicator so that its probe touches the measured outer circular surface (such as the major diameter of the thread, journal, etc.) vertically, avoiding errors caused by the probe being skewed.

3. Rotate the ball screw slowly for one full revolution, record the maximum and minimum readings of the dial indicator, and the difference between the two is the radial circular runout.

4. If the dial indicator is moved along the axis direction of the ball screw to measure the radial runout of multiple cross-sections, the maximum value obtained is the total radial runout (reflecting the radial deviation of the entire cylindrical surface).

Miniature Ball Screws application:

1. Automation Equipment: Conveying tables, precision XY platforms.

2. CNC Machining Tools: Lathes, milling machines, grinding machines.

3. Semiconductor Equipment: Exposure devices, electronic component inserters.

4. Industrial Robots: Cartesian coordinate robots, vertical multi-joint robots.

5. Electronics Industry: Flying probe testers, SMT automatic solder paste printers.

Attention:

1. The product price is confirmed based on the miniature ball screw's drawing specifications and quantity.

2. Lead time: 15-25 days

3. HOJAMA provides samples upon request. Please contact us for more information on how to obtain a sample.

4. We are a manufaturer of all kinds of ball screws, inlcuing miniature ball screws, Precision Ball Screws, Rolled Ball Screws and bidirectional ball screws.
