Precision Grinding C5 0801 Miniature Ball Screw

Basic Info

Model No.: MIF0801C

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

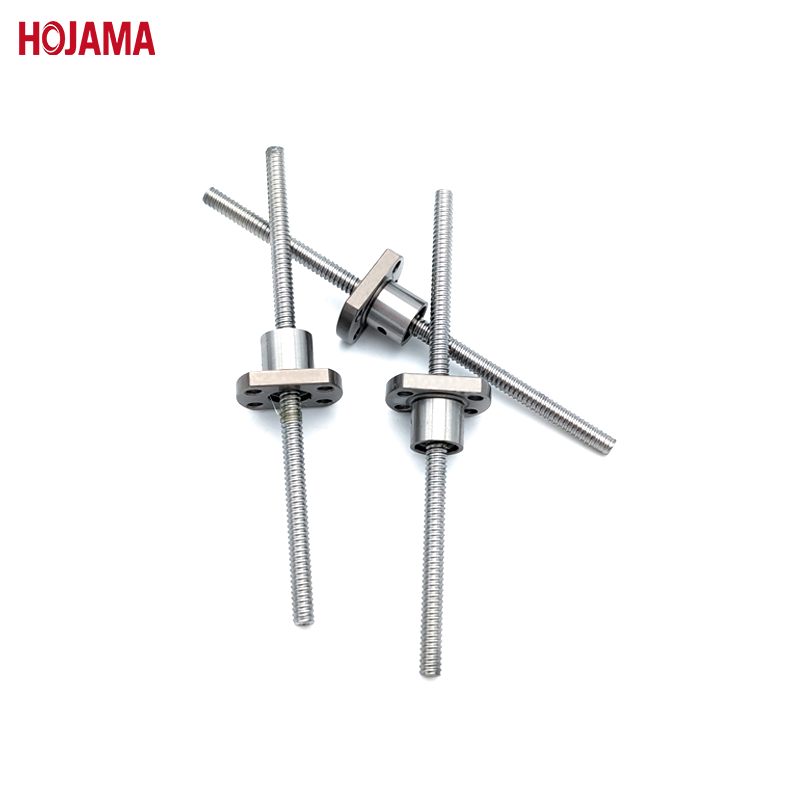

MIF0801C--High-precision 8mm ball screw

Hojama 8mm Diameter Ball Screw is designed for high precision and efficiency. With a 1mm lead, this miniature ball screw provides exceptional accuracy and performance. It features a standard round nut with a flange and an internal deflector for smooth operation. The ball screw nut delivers excellent anti-backlash performance, enhancing accuracy and extending service life. Providing all kinds of customization support, our high-performance ball screw kits are more suitable for various industrial needs.

HOJAMA Ball screw advantages:

1. High Accuracy

The mini ball screw assemblies we provide can achieve an accuracy grade of up to C3.

2. Long-term Reliability

Micro ball screws reduce wear and tear through their use of steel balls, ensuring high durability and an extended service life

3. Compact design

Miniature Ball Screws are designed with a compact size, allowing them to fit into those applications where space is limited.

The following considerations should be taken into account when selecting the specification and model of a ball screw:

1. Determine the positioning accuracy.

2. Determine the lead of the ball screw based on the motor and speed requirements.

3. Check the nut size to determine the stroke and related ball screw shaft end data.

4. Determine the average axial force and rotational speed according to the load and speed distribution (acceleration and deceleration).

5. Determine the preload based on the average axial force.

6. Determine the dynamic load rating based on the expected life, axial load, and rotational speed.

7. Determine the outer diameter of the ball screw kit and the nut type based on the basic dynamic load rating, lead, critical speed, and DmN value limit.

8. Determine the rigidity (machine design) based on the outer diameter, nut, preload, and load.

9. Determine the thermal deformation and cumulative lead based on the ambient temperature and total length of the nut.

10. Determine the pre-tension based on the rigidity of the ball screw system and thermal displacement.

11. Determine the motor drive torque and specifications based on the maximum speed of the machine tool, temperature rise time, and ball screw specifications.
