High Precision Steel Ball Screw 32mm Linear Motion

Basic Info

Model No.: SFS3205-3.8-413-496-C7

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Rolled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

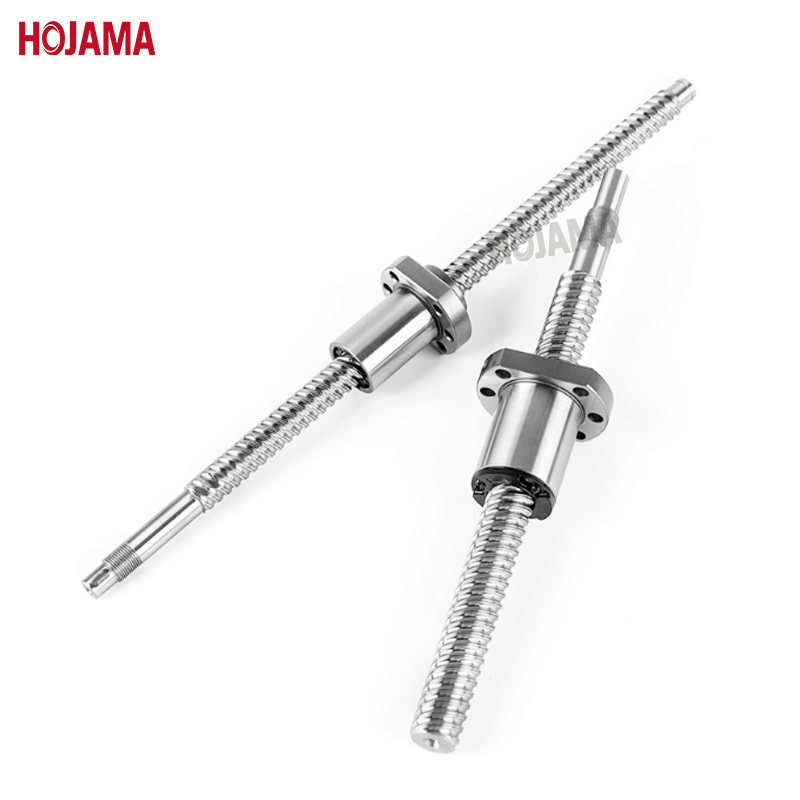

SFS3205-3.8-413-496-C7---32mm Diameter Rolled Ball Screw

How to Select the Ball Screw Assembly:

1) Determine the positioning accuracy.

2) Determine the lead of the ball screw based on the motor and speed requirements.

3) Check the nut dimensions to confirm the stroke and relevant shaft end data of the ball screw pair.

4) Determine the average axial force and rotational speed according to the load and speed distribution (acceleration and deceleration).

5) Determine the preload force based on the average axial force.

6) Determine the dynamic rated load based on the expected service life, axial load, and rotational speed.

7) Determine the ball screw's outer diameter and nut type based on the basic dynamic rated load, lead, critical speed, and DmN value limits.

8) Determine the rigidity (machine design) based on the outer diameter, nut, preload, and load.

9) Determine the thermal deformation and cumulative lead based on the ambient temperature and total nut length.

10) Determine the pre-tension force based on the ball screw rigidity and thermal deformation.

11) Determine the motor drive torque and specifications based on the maximum machine speed, temperature rise time, and ball screw specifications.

Hojama provides ball screws, Lead Screws, linear guides, Linear Modules, and Ball Splines. Welcome to contact us.
