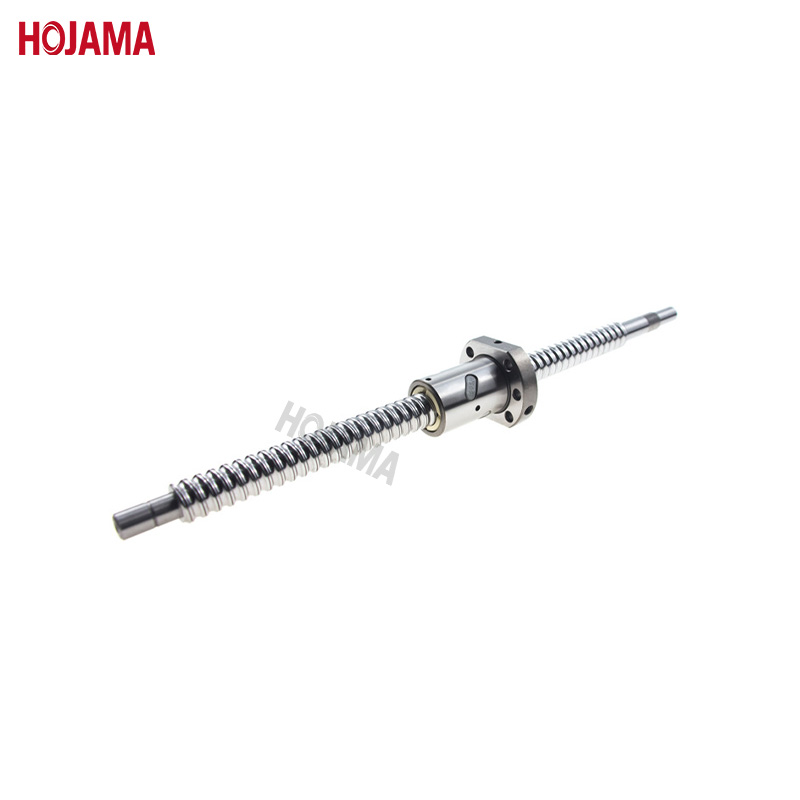

32mm Rolled Thread Ball Screw CNC Ball Screw

Basic Info

Model No.: SFU3205-433-512-C7

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Rolled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

Installation and Connection of Ball Screw Nut and Flange

The connection between the ball screw nut and flange shall be determined based on the nut structure design, and the common scenarios are as follows:

1. When the Nut and Flange Are Integrated

In most cases, the nut and flange of the ball screw assembly are of integrated design, requiring no special connection. Only in a few cases are threads machined on the nut body, and then the flange is connected via threads. If the nut of the ball screw pair is also equipped with a flange, simply fasten the flange on the nut and the flange of the nut seat with threads.

2. When the Nut Has No Integrated Flange

If the nut of the ball screw kit has no flange, check whether there are keyways or threads on the nut surface, and connect it to the nut seat via keys or lock nuts. The nut on the ball screw is provided with threaded holes for connection to the workpiece threaded holes with bolts.

Connection Methods:

1) Connect the nut flange with the nut seat and lock it with bolts.

2) Place the nut into the nut seat and fix it with a key.

3) Screw the nut into the threads of the nut seat.

Besides the ball screws, you also can be provided with the Lead Screws, Linear Guideways, Linear Modules, and Ball Splines. Welcome to contact us.
