High Precision Steel Ball Screw for Linear Motion

Basic Info

Model No.: GUH4016-1005-1182-C5

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

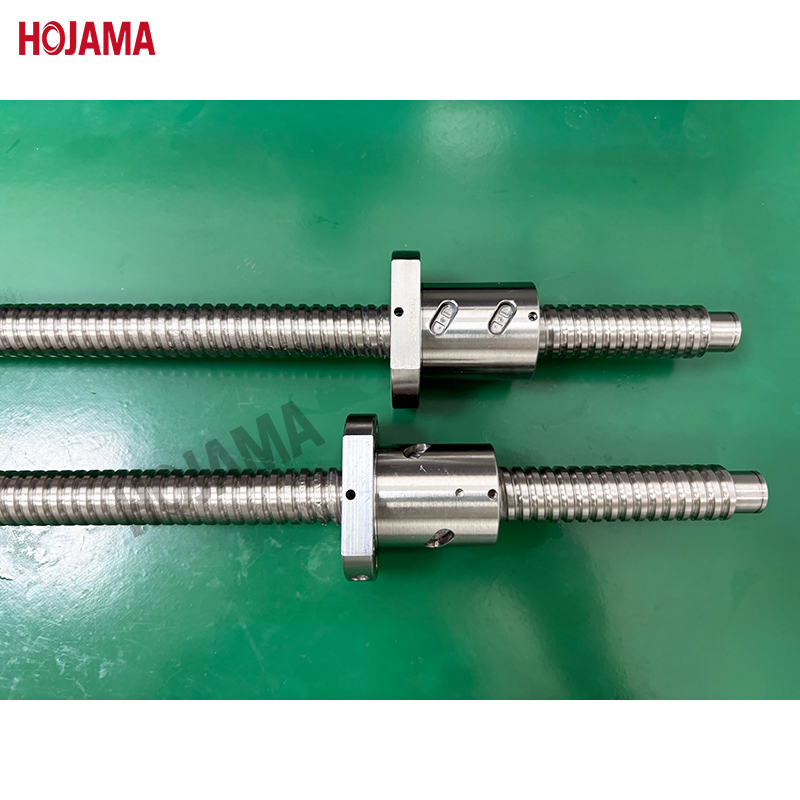

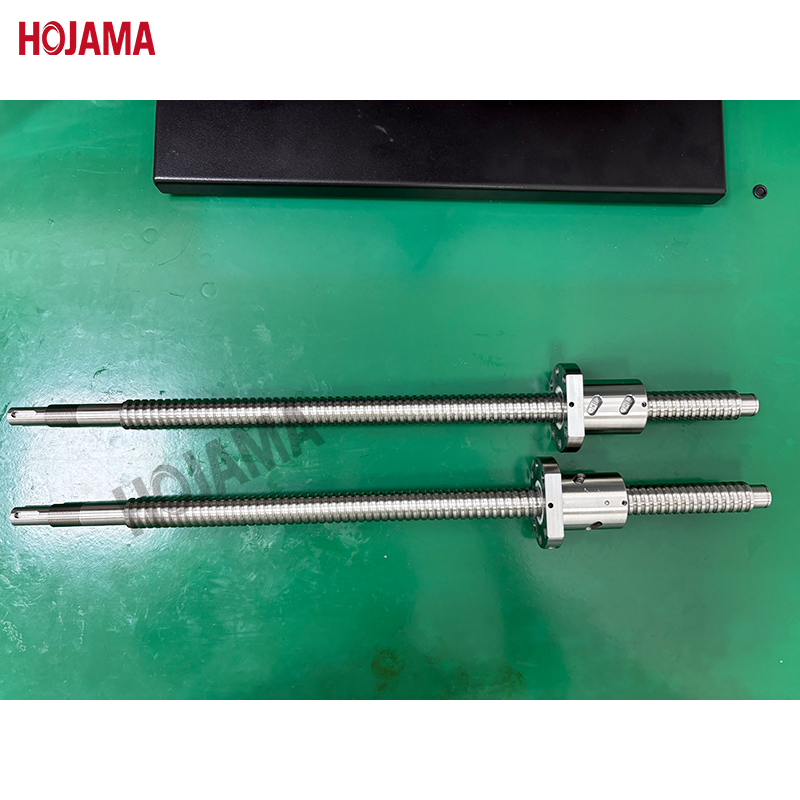

GUH4016-1005-1182-C5--Hojama CNC machine 40mm Diameter Ball Screw

GUH4016 is a precision ball screw with a 40mm diameter and a 16mm lead. With the C5 precision grade, the axial accuracy is 0.023mm.

Processing methods for ground ball screws

I. Material selection for ball screws

In practical applications, linear motion ball screws are used in various scenarios. Generally, to improve the service life of ball screw assemblies, hardened ball screws are adopted. Such ball screws are mainly processed by grinding, and their accuracy is guaranteed according to the standards of thread grinding machines.

II. Heat treatment of ball screw materials

During the heat treatment of linear ball screws, attention should be paid to avoiding bending deformation, and straightening processes should be avoided as much as possible. If necessary, hot straightening treatment can be used. Therefore, although a ball screw straightened at room temperature may seem straight in a short time, it will bend again the next day or after grinding.

III. Preparation before processing

The process datum of the ball screw kit is the center holes at both ends. The center holes usually adopt type B center holes, which can prevent the end face from being damaged and thus affecting the accuracy of the center holes. Meanwhile, the hardness of the center holes should reach 60-65 HRC. The accuracy of the center holes is crucial to ensuring the accuracy of the CNC ball screw. Before rough grinding and fine grinding processes, that is, after quenching and aging, a center hole adjustment process should be arranged.

Hojama was built in 2015. With more than ten years of experience, we aimed to produce higher accuracy and higher quality ball screws for more and more customers. And to get more satisfaction, we can also provide customized ball screws according to various requirements. Hojama products include ball screws, Lead Screws, linear guides, Ball Splines, and Linear Modules. Welcome to discuss more machinery plans with us.
