C5 C3 precision ball screws with End Machined

Basic Info

Model No.: G4006-4-478-533-C5

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

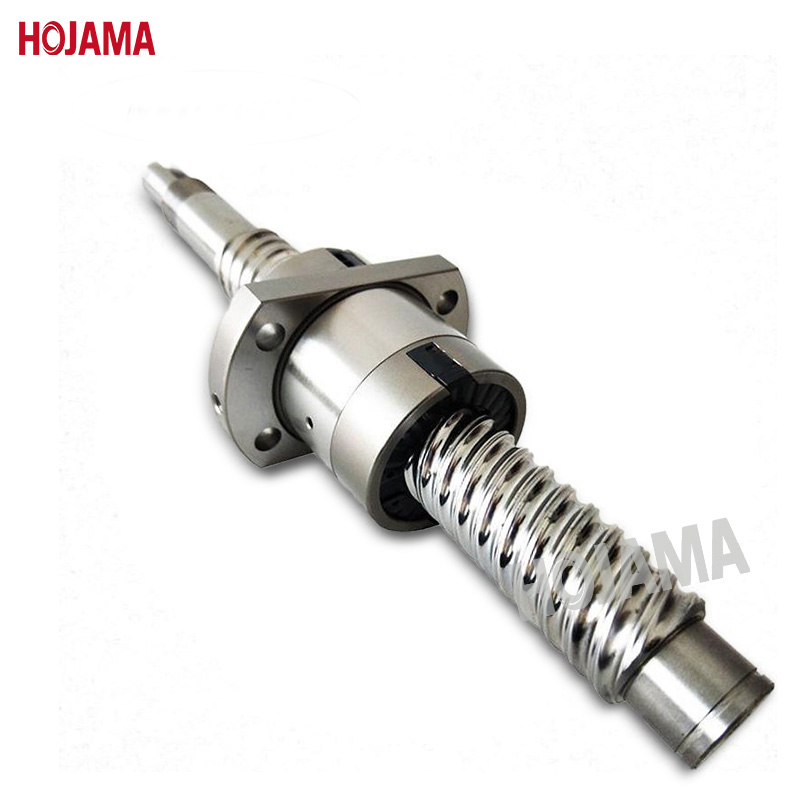

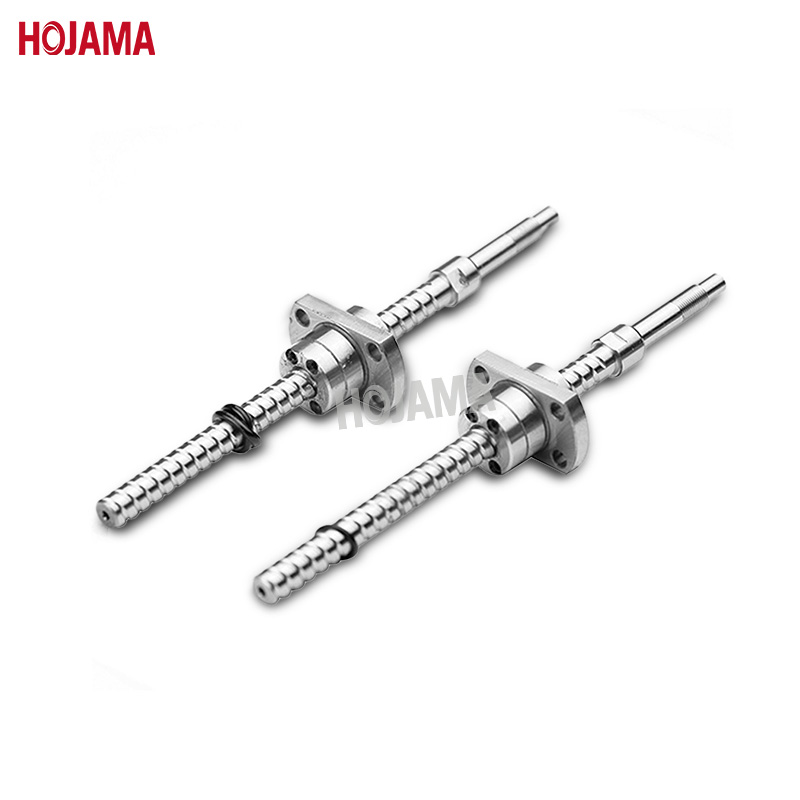

G4006-4-478-533-C5--40mm Diameter Ball Screw

Methods for Increasing Preload of Ball Screws:

1) Increasing Ball Diameter

This method makes the ball diameter slightly larger than the raceway diameter to form a 4-point contact preload, suitable for ballscrew kits with medium and low loads.

2) Integral Nut with Variable Pitch

This method adopts a single nut with a slightly variable pitch, generating preload through the micro-variation. It applies to ball screw assembly in general preload scenarios.

3) Double Nuts (Fixed Pin Type)

Using two nuts, a preload is obtained and maintained by inserting pins between the two nuts.

4) Double Nuts (Shim Type)

Using two nuts, preload is achieved by changing the thickness of the shim between the two nuts.

5) Double Nuts (Spring Type)

This method uses two ball nuts, with a spring inserted between them to apply preload. It is suitable for ball screw set requiring minimal maintenance torque.

Welcome to discuss how to use the ball screw to improve the efficiency of your equipment.
