Customized Stainless Steel Ball Spline

Basic Info

Model No.: SLF020T2

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

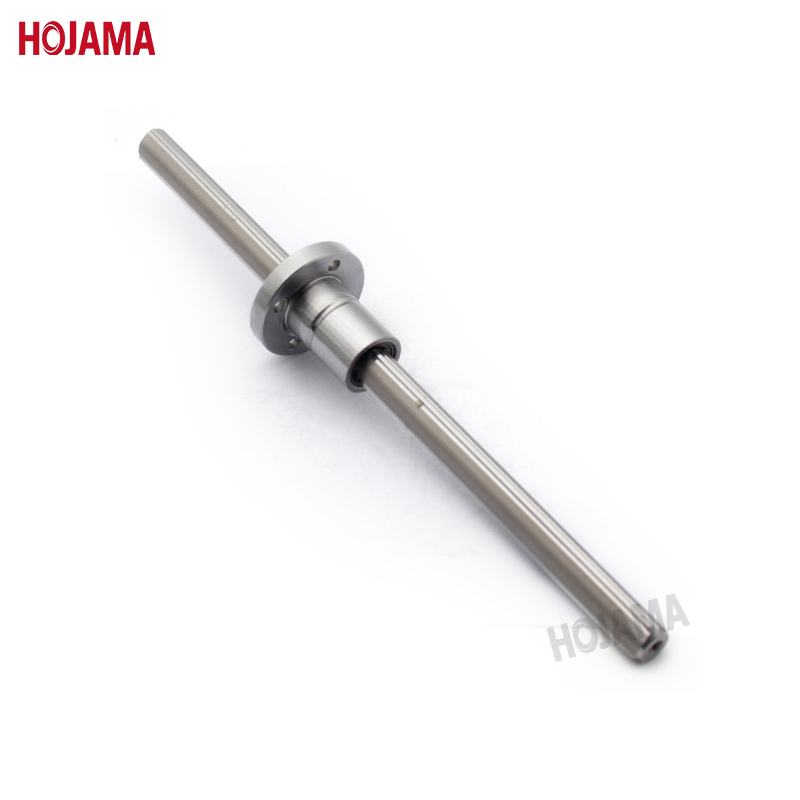

SLF020—20mm Diameter Ball Spline

1. Unique Design: The high-rigidity Ball Splines boast a unique 40°angular contact design, granting high sensitivity and an extraordinary load-carrying capacity. They are perfectly suited for high-speed, vibration-prone, impact-loaded, and precision-positioning applications.

2. Efficient Application: This ball spline with a solid or hollow shaft can handle more load than linear bushings. Steel balls roll in the shaft grooves, transmitting torque during linear movement.

3. Enhanced Performance:

1) Longevity & Load: The ground R-shaped track surface near the steel ball diameter in the ball spline boosts contact area, load capacity, and lifespan. The unique ball groove design allows for efficient load distribution among the steel balls.

2) Processing Ease: Its grooved round shaft design simplifies shaft end processing during installation. Our easy-to-assembly ball spline can save a lot of time and cost in daily maintenance.

3) Versatile Types: Spline shaft diameters from 6-50mm, outer cylinders in cylindrical, round/square flange forms. The stainless steel ball spline offers various configurations to meet various machinery needs.

4) High-Speed: Compact outer cylinder ball spline facilitates high-speed movement and rotation. The steel ball circulation system ensures smooth operation even at high speeds.

5) Precision Torque: Forms proper contact angles with steel balls in the linear ball spline for high-torque transmission. Preload application eliminates rotation gaps, enhancing rigidity and positioning accuracy.

Hojama ball splines include 6mm Diameter Ball Spline、8mm Diameter Ball Spline、10mm Diameter Ball Spline、 13mm Diameter Ball Spline、16mm Diameter Ball Spline、20mm Diameter Ball Spline, and 25mm Diameter Ball Spline. Come on and make your purchase!
