Medium Torque Model LT Ball Spline

Basic Info

Model No.: SLT020

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

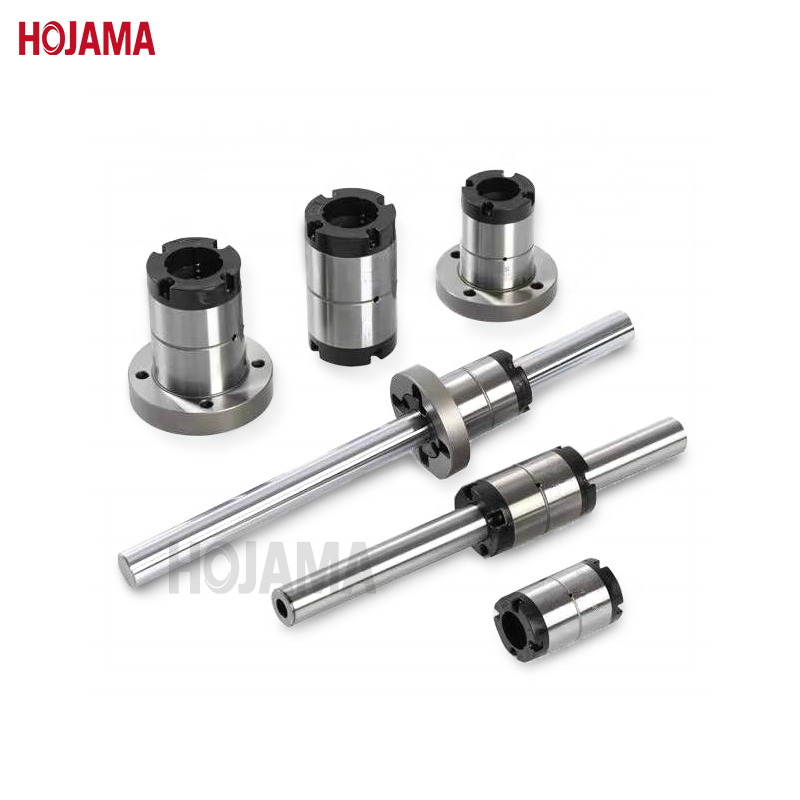

SLT020—20mm Diameter Ball Spline

The high-accuracy ball spline, which is alternatively referred to as a linear ball spline shaft, represents an anti-rotation shaft guide. It primarily comprises a nut that is filled with steel balls and a shaft featuring several longitudinally paired grooves. The steel balls travel in a closed-loop track between the nut and the shaft, facilitating the nut's movement along the shaft with minimal friction and high precision.

The high-load capacity Ball Splines are capable of executing precise linear movements using a cylindrical nut.

About Linear motion ball splines, Hojama can do:

1. Accuracy Grade

Three accuracy grades (N/H/P) are available for selection to meet diverse industrial requirements.

2. Solid/Hollow Shaft

The compact ball spline is generally furnished with a solid spline shaft as the standard option. However, upon your request, a hollow spline shaft is also available to cater to your particular needs.

3. Customized Support

Hojama provides various customization support, including material, surface treatment, diameter, length...

We can also provide high-speed ball screws, Lead Screws, linear guides, and Linear Modules. If you are interested, please consult with us based on the product drawing you provided.
