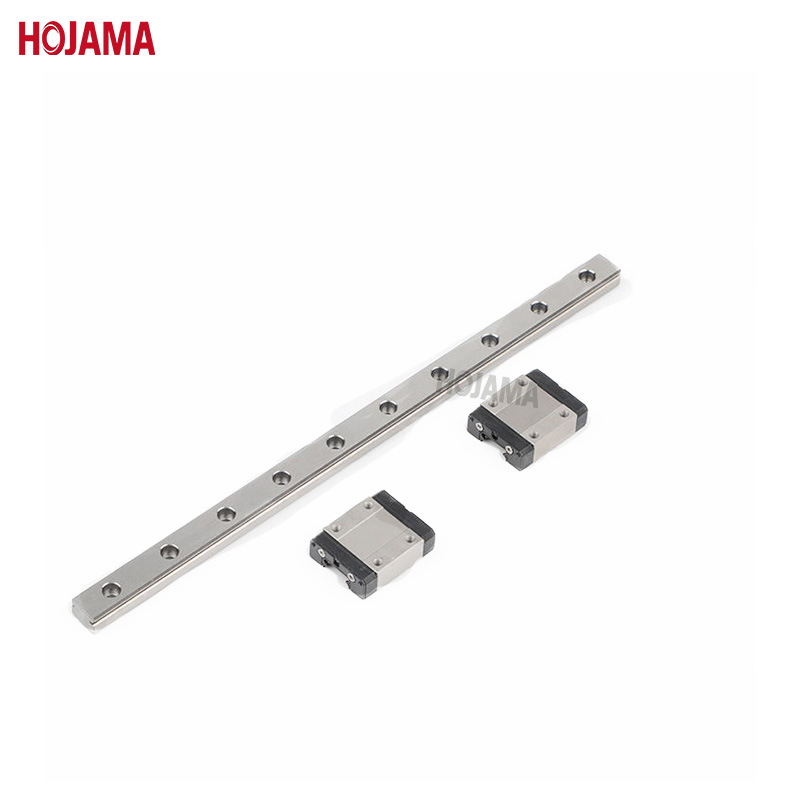

Stainless Steel Linear Ball Guide High Precision

Basic Info

Model No.: EGH25CA

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

EGH25CA--EG series Linear Guideways

High-quality linear guide rails should meet the following requirements:

1) High Motion Sensitivity and Positioning Accuracy

Positioning accuracy refers to the capability of the moving component to stop at the specified position as required. Motion sensitivity denotes the minimum stroke that the moving component can achieve smoothly.

2) Superior Accuracy Retention

Accuracy retention is the ability of the guide rails to maintain their original geometric precision during operation. This primarily depends on the wear resistance of the guide rails and their dimensional stability.

3) High Rigidity

Since the guide rail surfaces bear the external forces applied to the moving components, the guide rails must have sufficient rigidity. Thus, increasing the width of the guide rail surfaces to reduce specific pressure and installing auxiliary guide rails are common practices to bear external loads.

4) Smooth Operation

The smoothness of linear rail movement refers to the performance that prevents crawling phenomena during low-speed motion or micro-displacement.

5) Excellent Wear Resistance

Wear resistance of the linear guide ensures that it can maintain the specified operational accuracy after long-term use. Although wear is inevitable, the design should minimize wear and enable automatic compensation or easy adjustment of wear-induced deviations.

6) Strong Vibration Resistance

Vibration resistance refers to the capability of the linear guide pair to withstand forced vibration and impact, while stability denotes the performance of avoiding self-excited vibration under given operating conditions.

7) Resistance to Deformation under Load

Deformation can affect the relative positions and guiding accuracy of components, which is particularly critical for precision machinery and instruments.

Send us the product drawing, and then we will provide the quotation and lead time as soon as possible.
