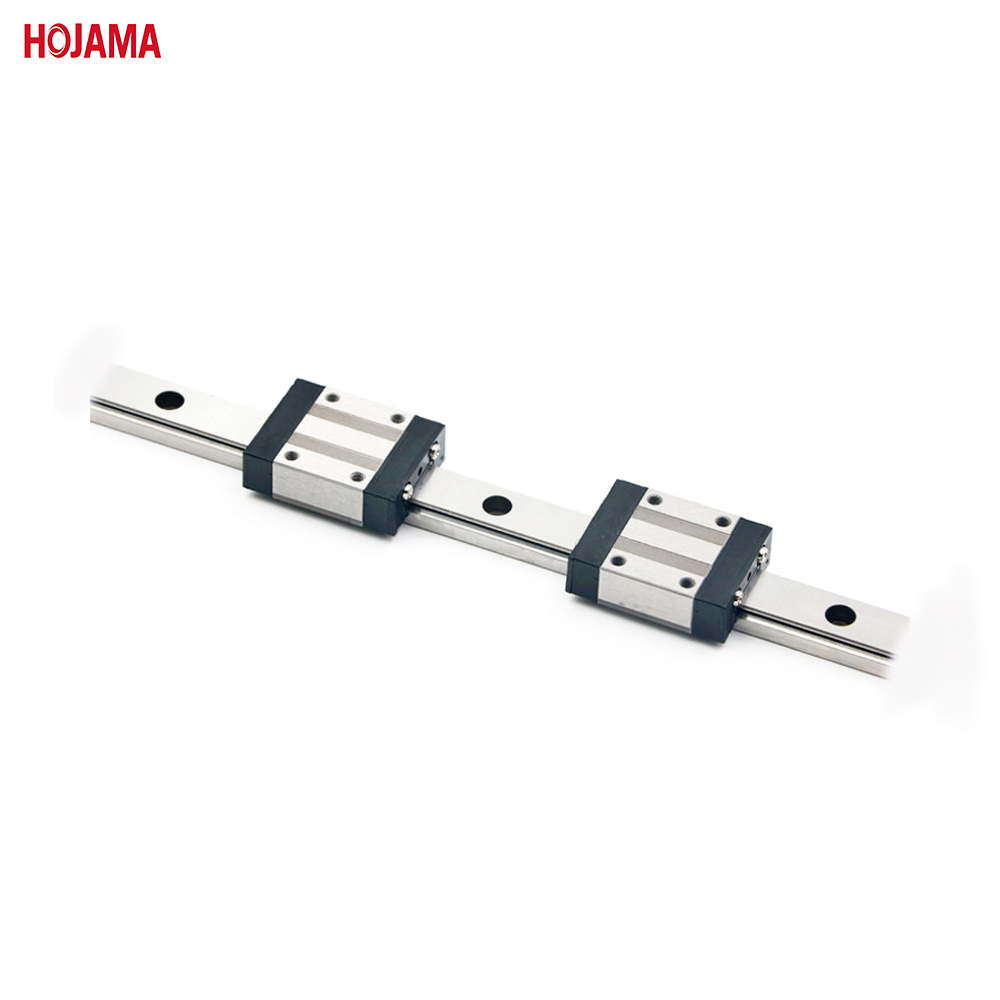

HGL15 Anti Friction Linear Motion Guideways

Basic Info

Model No.: HGL15CA

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

The HG Series Linear Guideways are suitable for industries including machining centers, CNC lathes, grinding machines, precision machining equipment, heavy-duty cutting machines, marble cutting machines, rubber, and so on.

(1) Self-aligning Capability

The HG series linear guide design features contact points at 45 degrees within the curved slot, allowing it to absorb most installation errors caused by surface irregularities. It provides smooth linear motion through the elastic deformation of the rolling elements and the movement of the contact points.

(2) Interchangeability

The size tolerance of the anti-friction linear motion guideways is maintained within a reasonable range due to precise size control. This means that any specific series of sliders can be used with any guide rail while maintaining dimensional tolerance. Additionally, a retainer is included to prevent the steel balls from falling out when the slider is removed from the guide rail.

(3) High Rigidity in Four Directions

With their four-row curved design, the Linear Guideways provide equal-rated loads in the radial, anti-radial, and lateral directions. The curved slots offer a larger contact width between the balls and the rail grooves, allowing for higher permissible loads and increased rigidity.

Precision: C, H, P, SP, UP

Preload Grades: Z0, ZA, ZB

Rail Mounting Type: R (Top Mounting), T (Bottom Mounting)

Attention:

1. The product's actual price varies depending on the quantity and specific requirements.

2. The delivery time for samples is 5 to 7 days, for your assessment.
