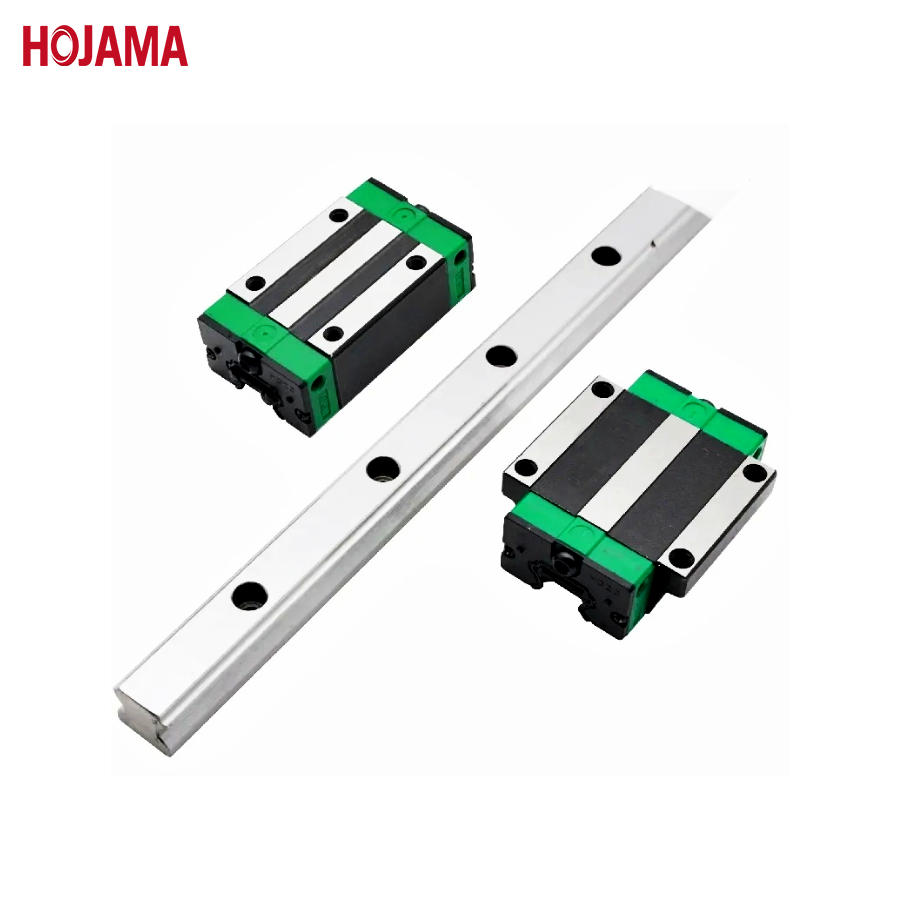

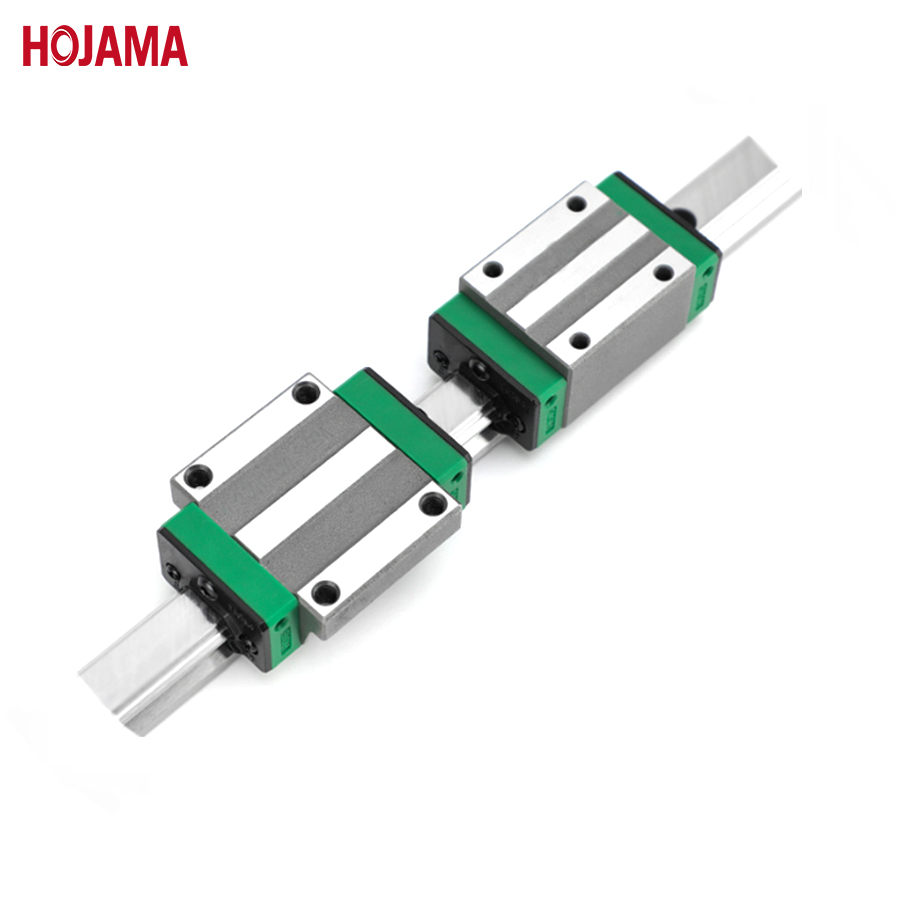

Heavy Duty Linear Guide Rail for Linear Motion

[HGH-65-CA] Series:

Block Type: H (Square Type);

Model Size: 65;

Load Type: C (Heavy Load);

Block Mounting Type: A (Mounting from Top)

[Self-aligning capability] The circular-arc groove features 45-degree contact points. The HG series linear guides effectively absorb most installation errors from surface irregularities. They ensure smooth linear motion through the elastic deformation of rolling elements and the adjustment of contact points. With self-aligning capability, high accuracy, and smooth operation, this heavy-duty linear guide is an ideal choice for applications requiring robust and precise linear motion.

[Interchangeability] Due to precise dimensional control, the HG series linear guide maintains dimensional tolerance within a reasonable range. This allows any blocks and rails from the same series to be used together while preserving tolerance. Additionally, a retainer is included to prevent the balls from falling out when the blocks are removed from the rail.

[High rigidity in all four directions] Thanks to its four-row design, the HG series heavy duty linear guide offers equal load ratings in radial, reverse-, and lateral directions. The circular arc groove also ensures a broad contact area between the balls and the groove raceway, enabling higher permissible loads and enhanced rigidity.

Attention:

1. The prices of Linear Guideways displayed on the page do not reflect the actual product prices. For accurate pricing, which depends on specific product parameters and order quantities, please contact us directly.

2. Samples are available upon request, and the delivery time is 5 to 7 days.





Product Categories : Linear Guideways > HG Series Linear Guideways
