Linear Guideways are categorized by load capacity into several types: heavy-load, light-load, and ultra-light-load. The HG series, for instance, is a heavy-load model, offering higher load capacity and rigidity than other types. Each load category is tailored to different weight requirements, letting users pick the right one based on their specific application needs.​ Linear guideway precision is determined by several key indicators, including dimensional tolerance of height H, pairwise difference in height H, dimensional tolerance of width W, pairwise difference in width W, running parallelism between the slider’s upper surface and the rail’s lower surface, and running parallelism between the slider’s side surface and the rail’s side surface. Typically, when we talk about "precision," we’re referring specifically to the running parallelism between the slider’s upper surface and the rail’s lower surface. For a 100mm-long guideway, these precision grades break down as: ordinary grade (unmarked / C) at 5μm, high grade (H) at 3μm, precision grade (P) at 2μm, super precision grade (SP) at 1.5μm, and ultra-super precision grade (UP) at 1μm.​

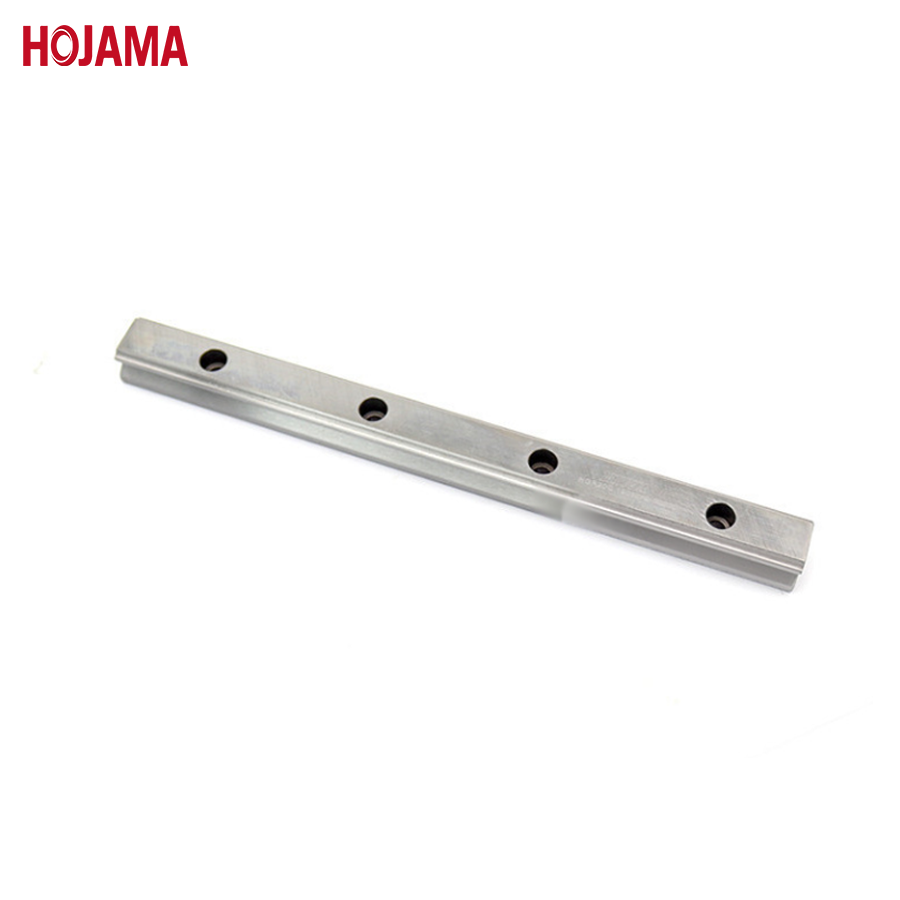

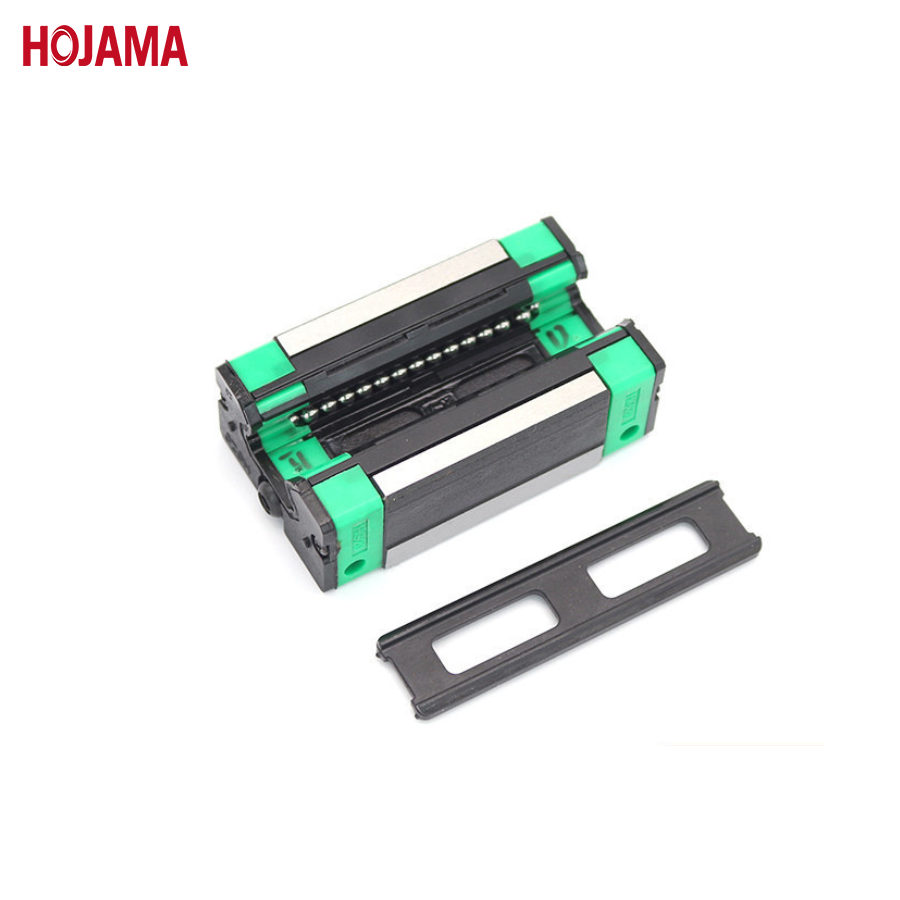

HGL30HA--Hojama high-precision linear guide

Advantages of Heavy-Load Linear Guides:​

Heavy-duty linear guides can handle loads up to several tons, making them ideal for various heavy machinery and equipment.​

2. High Precision​

CNC linear guides are crafted with high precision, delivering accurate linear movement. Their sturdy design and quality materials boost rigidity, enhancing both stability and precision in equipment operation.​

3. High Rigidity​

The construction and material quality of these guides ensure excellent rigidity—critical for maintaining machinery stability and precision.​

4. Long Service Life​

Made from wear-resistant materials with special surface treatments, heavy-duty linear rails offer a long operational lifespan.​

5. Easy Maintenance​

Designed for minimal upkeep, these rails reduce downtime and maintenance costs, with straightforward care requirements.​

Notes:​

1. Product pricing depends on order quantity and specific specifications.​

2. HOJAMA offers samples, with delivery taking 5–7 days.​

3. For more details, feel free to contact HOJAMA.
