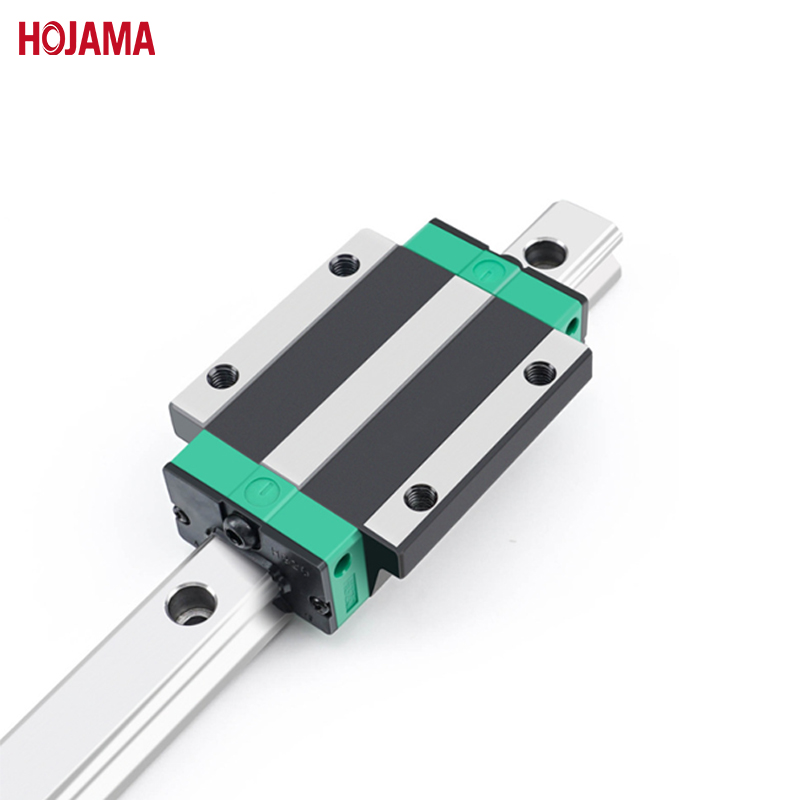

Model No.: HGH45CA
Brand: HOJAMA
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump
Place Of Origin: China
Packaging: Wooden box
Productivity: 30000 sets/month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 30000 sets/month
Certificate: ISO9001:2015
Port: Shanghai,Dalian,Zhoushan
The linear guideway is a rolling guidance system that achieves high-precision linear motion of the load platform along the guide using the infinite rolling circulation of steel balls between the slider and the rail. Compared to traditional sliding guidance systems, this design significantly reduces the friction coefficient, greatly enhancing positioning accuracy and making precise motion easier.
The metal slide rails are primarily used in machinery with high precision requirements. They operate without intermediate media between the moving and fixed components, using rolling steel balls instead. Rolling steel balls are suitable for high-speed motion, have a low friction coefficient, and offer high sensitivity, meeting the performance needs of moving parts such as tool rests and sleds in machine tools. However, if the force applied to the steel balls is too great or the preloaded load is applied for too long, it can increase the resistance to movement of the support.
Key advantages of the linear guide:
1. High Sensitivity:
The dynamic friction coefficient is very close to the static friction coefficient, resulting in smooth motion and minimal crawling at low speeds.
2. High Positioning Accuracy:
Repeated positioning accuracy of the Linear Guideways can reach up to 0.2μm.
3. Low Friction Resistance:
Movement is smooth and lightweight, with minimal wear and excellent accuracy retention.
Notice:
1. Product prices are influenced by the actual order quantity and product parameters.
2. Samples are provided, with a delivery time ranging from 5 to 7 days.
