Heavy Duty HG Series Linear Rail Kit

Basic Info

Model No.: HGH35HA

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

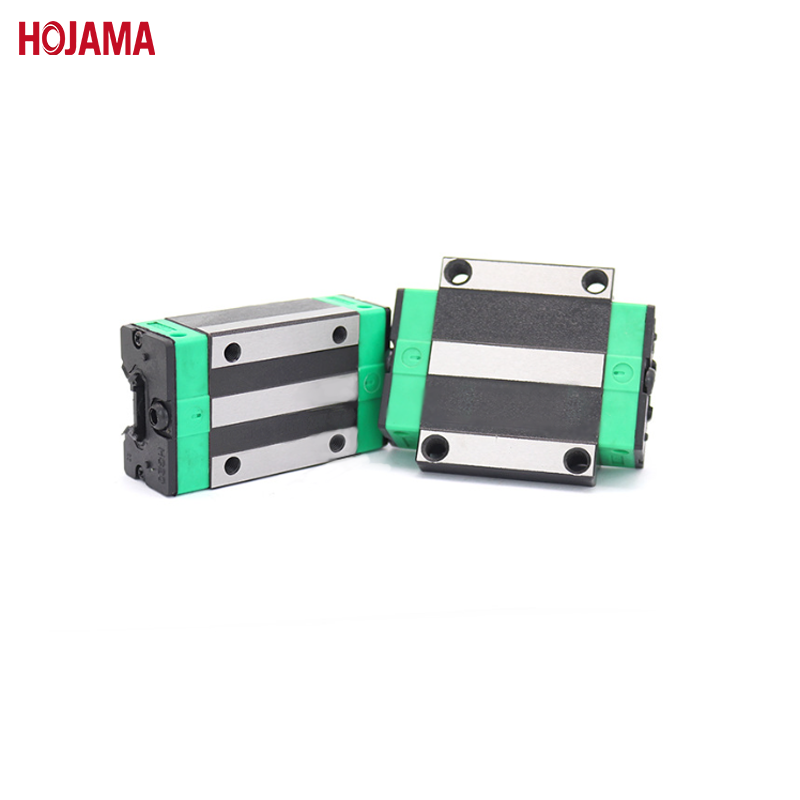

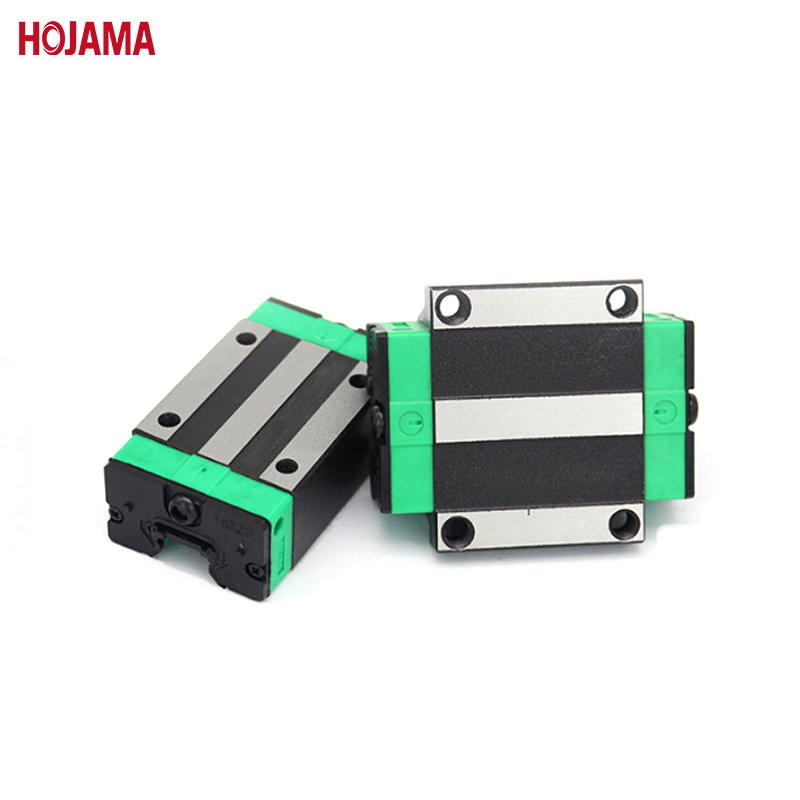

HGH35HA——HG Series Linear Guideways

The DF (45°) arc groove design ensures accurate, stable, and smooth motion with automatic alignment of components, even with minor installation deviations. The HG series linear guideways are available in non-interchangeable and interchangeable types. Customers can either purchase them as a set or order guides and sliders separately. The four-row arc groove design with a 45° contact angle provides ideal two-point contact, supports both vertical and horizontal loads, and allows for additional rigid preloading if needed.

Unique features of the linear guide:

1. High quality material

HOJAMA linear guides are made from premium bearing steel or stainless steel, providing superior rigidity and long service life.

2. Superior Load Capacity

The balls are arranged with a 45-degree contact angle, providing the same rated load in radial, reverse radial, and lateral directions.

3. Wide Application
These heavy-duty slide rails are widely used in linear motion systems, including applications such as punches, tool grinding machines, automatic cutting machines, printers, card sorting machines, food packing machines, and other sliding components in industrial machinery.

Attention:

1. The prices listed on the page are not the actual prices. The final price of the Linear Guideways depends on the product parameters and quantity.

2. HOJAMA is committed to providing samples, with a delivery time of 15 to 25 days.
