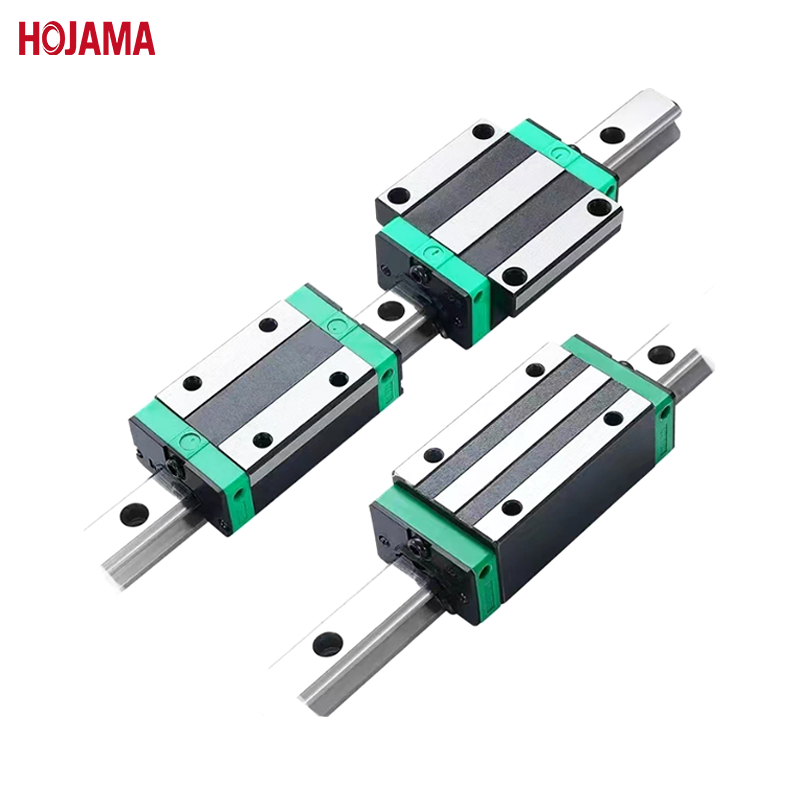

HG Series Linear Guideway Systems for Linear Motion

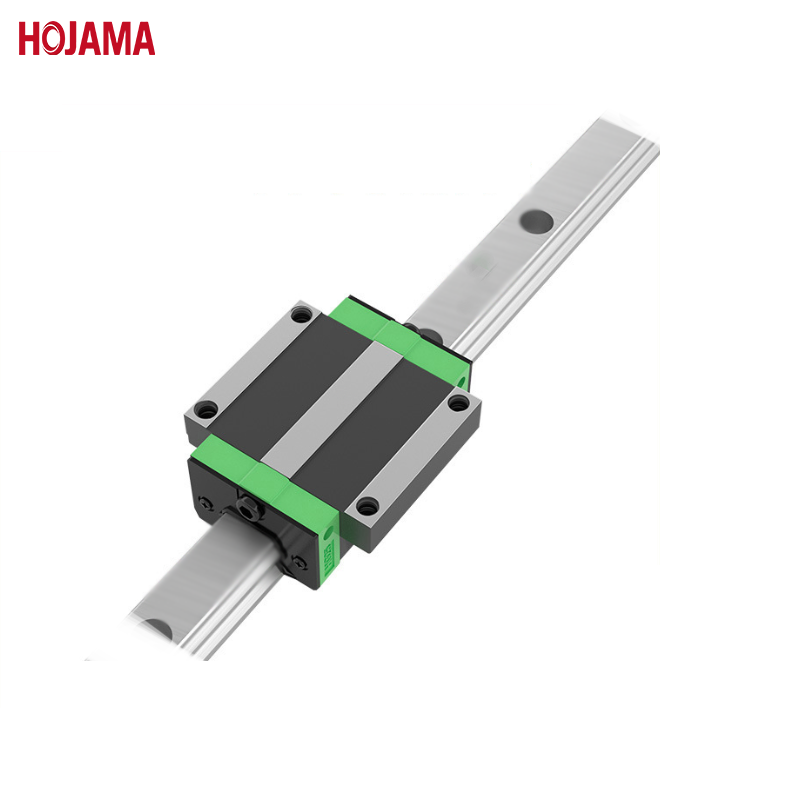

Linear guide model: HGH30CA

HG Series Linear Guideways feature a 4-row angular contact ball bearing with a 45° contact angle, offering identical rated load capacities in radial, reverse radial, and lateral directions. The arc groove design on the front allows for automatic self-aligning, absorbing installation errors and ensuring smooth, stable, and high-precision linear motion. Due to strict control over manufacturing precision, dimensions remain within stable tolerances. Consequently, interchangeable linear guides can be assembled with any slider of the same model, maintaining consistent smoothness, preload, and accuracy, which simplifies both assembly and maintenance.

Advantages of Linear Guideways:

1. High Positioning Accuracy

The precision Linear Guides use rolling friction, which has a lower coefficient than sliding friction, resulting in minimal slippage and superior positioning accuracy.

2. Low Wear and Long-Term Accuracy

Unlike sliding guides, which suffer from wear and reduced accuracy due to lubrication issues, rolling guides experience minimal wear and maintain accuracy over time.

3. Efficient for High-Speed Motion

The linear guide rails produce very little friction, requiring less power and reducing electricity consumption, making them ideal for high-speed operations.

4. Handles Loads in All Directions

HOJAMA linear guides can support loads from all directions simultaneously, unlike sliding guides that struggle with lateral loads and may affect accuracy.

Note:

1. The actual price of the product needs to be determined based on the specific product parameters and the actual order quantity.

2. Samples are available upon request, with a delivery period of 5-7 days. For more details, please contact HOJAMA.
