Ball Splines are linear systems specifically designed for torque transmission in various mechanical transmission scenarios.
Inside the spline nut, the embedded balls can perform linear translational motion. These steel balls, through the tracks on the shaft, achieve the transmission of torque or resist torsional moments, ensuring efficient and stable power transmission.

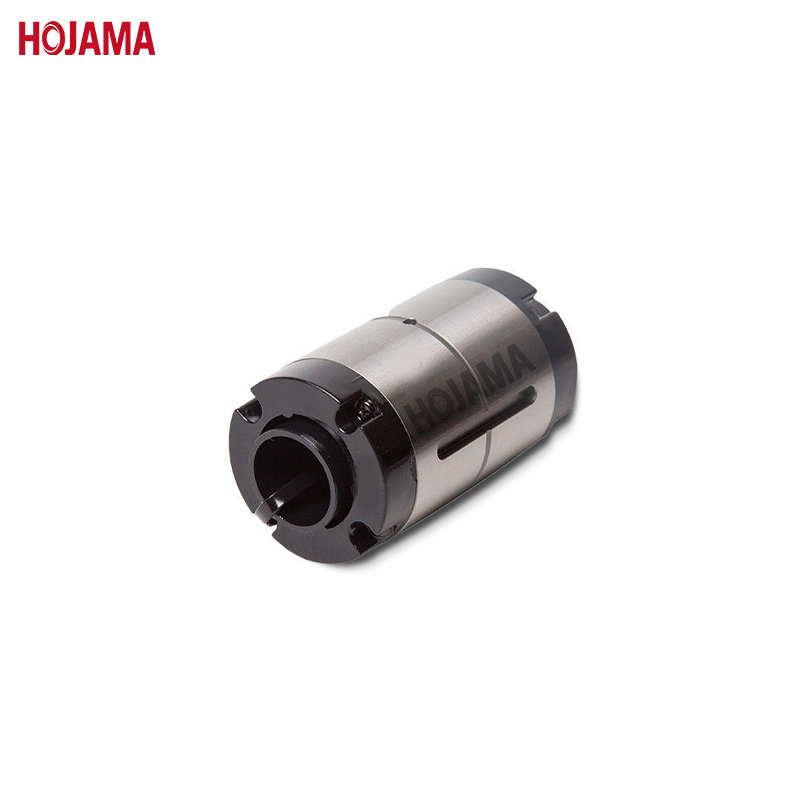

The spline nut is cylindrical and designed with a keyway for fixing. This makes the installation process easy and convenient, greatly reducing installation time and labor costs. We also offer various options. The spline nut can have a slight amount of backlash or be preloaded to meet usage requirements under different working conditions.
This linear motion ball spline system features a compact structure, which is especially suitable for where space is limited. At the same time, it has a high safety factor. Even under complex working conditions of bearing radial loads, bending moments, and torsion forces, it can still operate reliably, providing a solid guarantee for the stable operation of the equipment. In addition, the product has an extremely long service life, reducing the maintenance frequency and replacement costs of the equipment, and bringing you a long-term and stable usage experience.
Besides the ball splines, we can provide the ball screws, Lead Screws, linear guides, and Linear Modules and we also can offer you customization support. Please send the product drawing and we will give you a pleasing result.
