High Precision Stainless Steel Ball Spline

Basic Info

Model No.: SLF006T4

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

SLF006—6mm Diameter Ball Spline

SLT-type Ball Splines feature a straight cylindrical shape spline nut, devoid of a flange. Among our ball spline product offerings, it stands as the most compact option. The standard method for mounting this cylindrical nut involves the use of a key. To facilitate this, the cylindrical nut is equipped with a keyway, and a separate key is provided for a secure connection.

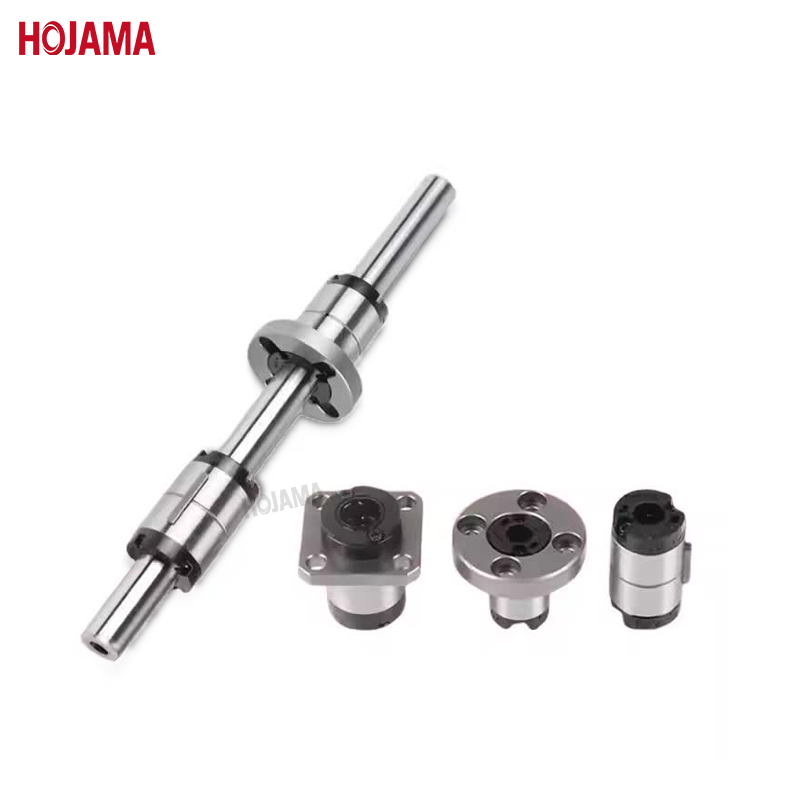

Features of linear motion ball splines:

1) The wide, precision-ground grooves not only endow the splines with enhanced load-carrying capabilities but also significantly improve rigidity and stiffness, enabling them to deftly handle larger moment loads.

2) The groove design, closely mimicking a Gothic archer, eradicates angular clearance and backlash, rendering our ball splines the perfect choice for applications where pinpoint precision is non-negotiable.

3) The 40˚ angular contact design allows the grooves to operate with minimal friction, all while attaining optimal sensitivity.

4) A simple, ball-retaining design simplifies the removal of the spline nut, ensuring a clean and hassle-free maintenance process.

Beyond ball splines, Hojama offers an array of complementary products including ball screws, Lead Screws, linear guides, and Linear Modules, ensuring comprehensive solutions for all your motion-control needs.
