High Sensitivity Ball Spline SLT006 for CNC Machine

Basic Info

Model No.: SLT006T2

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

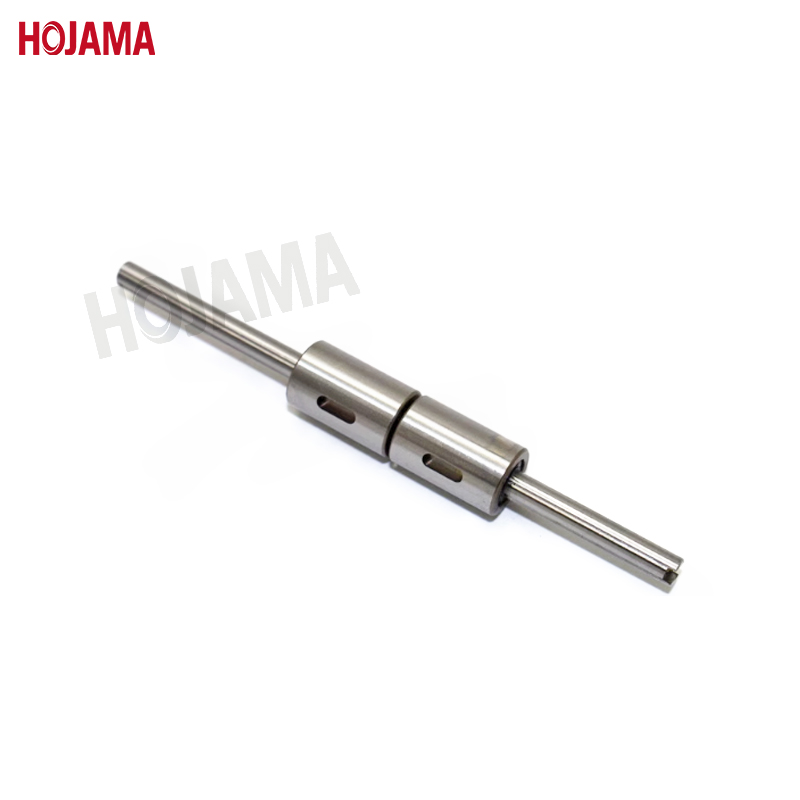

SLT006: 6mm Diameter Ball Spline

Advantages of linear Ball Splines:

1. High Load-carrying

The rolling grooves for the steel balls are precision-ground and feature a Gothic arch design with a 40° contact angle, allowing for significant load capacity in both radial and torque directions.

2. High Rigidity

The larger contact angle provides high rigidity and allows for appropriate preloading, resulting in increased torque stiffness and moment stiffness.

3. Zero Angular Clearance

Using a contact angle of 40° with relative 2 to 4 rows of steel balls, the linear motion spline shaft is combined with the outer cylinder. Additionally, adjusting the preload method allows for zero clearance in the rotational direction.

4. Mount-Simple on Design

Thanks to the special design of the linear ball spline set, the steel balls will not fall out even if the outer cylinder is removed from the spline shaft, making assembly, maintenance, and inspection very straightforward.

We aslo provide ball screws, Lead Screws, Linear Guideways, and Linear Modules. HOJAMA welcomes you to inquire about any questions regarding product pricing and delivery time！

Brand	HOJAMA
Material	GCr15/SS304/SS316/SS316L/SS440c(9Cr18)
Accuracy Grade	N/H/P
Surface Treatment	(CR)/(WS)/(MS)/(BR)/(ZN)/(BL)
Backlash Value and Preload Level	P0/P1/P2
Number of Ball Rows	T2/T4
Spline Shaft Type	S: Solid / H：Hollow
