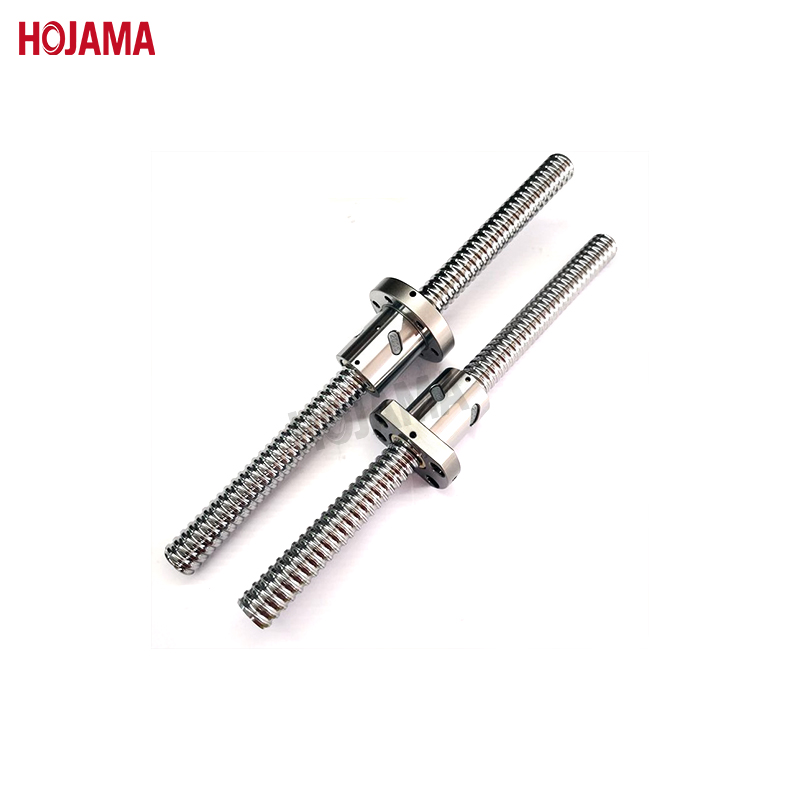

High Precision Ground 32mm Ball Screw for CNC

Basic Info

Model No.: G3208-4

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

G3208-4——32mm Diameter Ball Screw

Ground Ball Screws and Cold Rolled Ball Screws:

Ball screws are categorized into two types: ground ball screws and rolled ball screws. For ground ball screws, the raceways are first machined into shape using a lathe tool, and then ground to the required dimensions and precision by a grinding machine. In contrast, cold rolled ball screws are formed by extrusion during the cold rolling process, with both ends directly processed to complete the manufacturing.
1. Cold Rolled Ball Screws

The key challenge lies in the large allowance at the bearing seat, coupled with high hardness after heat treatment. Traditional processes typically involve annealing first, followed by lathe machining, or adopting a grinding process.

2. Precision Ground Ball Screws

The main hurdle is thread cutting. After heat treatment, ground ball screws have a hardness of HRC 60-65. Conventionally, threads are formed by grinding, but this method suffers from low efficiency and a high rejection rate, which affects overall production progress.

The quotation, delivery time, and customization plan rely on the drawings you provide. To serve you better, please supply the drawings when inquiring for a more accurate and efficient service.
