14x4 Small Zero Backlash Ball Screw

Basic Info

Model No.: MIF1404B

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

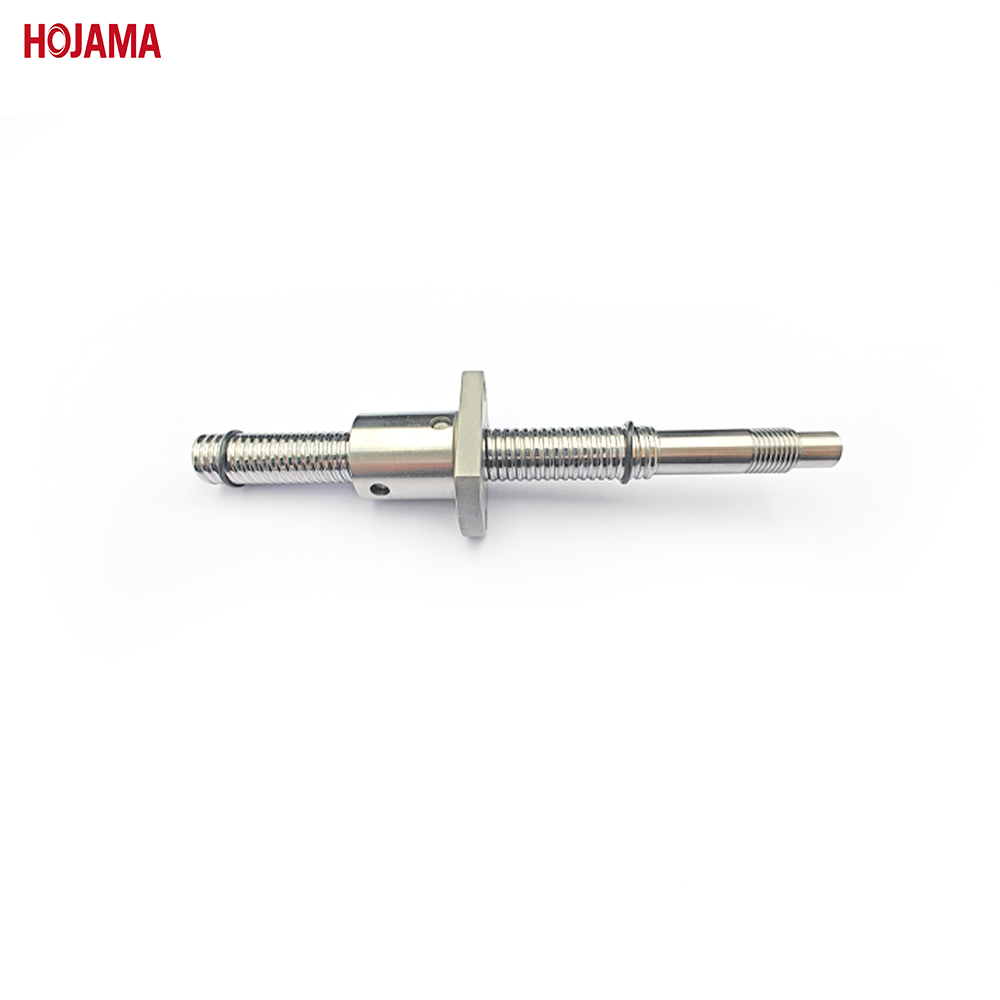

MIF1404B-14mm Diameter Ball Screw

The miniature ball screw consists of several key components, including:

1. Screw Shaft: The screw shaft is the core component of the ballscrew, made from high-strength steel with a precisely machined thread profile. The steel balls move along this threaded profile to enable linear motion.

2. Ball Nut: The ball nut serves as the housing for the steel balls. It is designed to minimize friction between the steel balls and the screw shaft.

3. Balls: The steel balls allow the nut to move smoothly along the screw shaft. They are designed to reduce friction and wear during the operation.

The MIF1404B ball screw, the 14mm diameter ball screw, incorporates a standard nut with a floating deflector return system. Its round nut with a flange provides a compact yet sturdy solution. And the shaft end can be customized to meet specific application needs. Available with a right-hand thread by default, it can also be customized with a left-hand thread, offering flexibility and precision for various mechanical setups.

Wide application of Miniature Ball Screws:

1. Machine Tools: lathes, milling machines, and CNC machines.

2. Robotics: robotic arms and legs.

3. Aerospace: aircraft control systems and aerospace applications.

4. Medical Equipment: surgical robots and imaging systems.

5. Automotive Industry: assembly lines and robotic welding systems.

Note:

1. Product pricing is based on actual conditions.

2. The sample delivery time is 15 to 25 days.

3. Samples can be provided upon request.
