Model No.: MIF1403
Brand: HOJAMA
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump
Processing Technology: Milled Thread
Place Of Origin: China
Packaging: Wooden box
Productivity: 30000 sets/month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 30000 sets/month
Certificate: ISO9001:2015
Port: Shanghai,Dalian,Zhoushan
Ball screws come in two types of ball return methods: external circulation and internal circulation.
1) External Circulation: In this design, the balls return to the opposite end of the circuit via a return tube extending beyond the ball nut's outer diameter.
2) Internal Circulation: Here, the balls return through or along the wall of the nut, staying within the outer diameter of the ball nut.

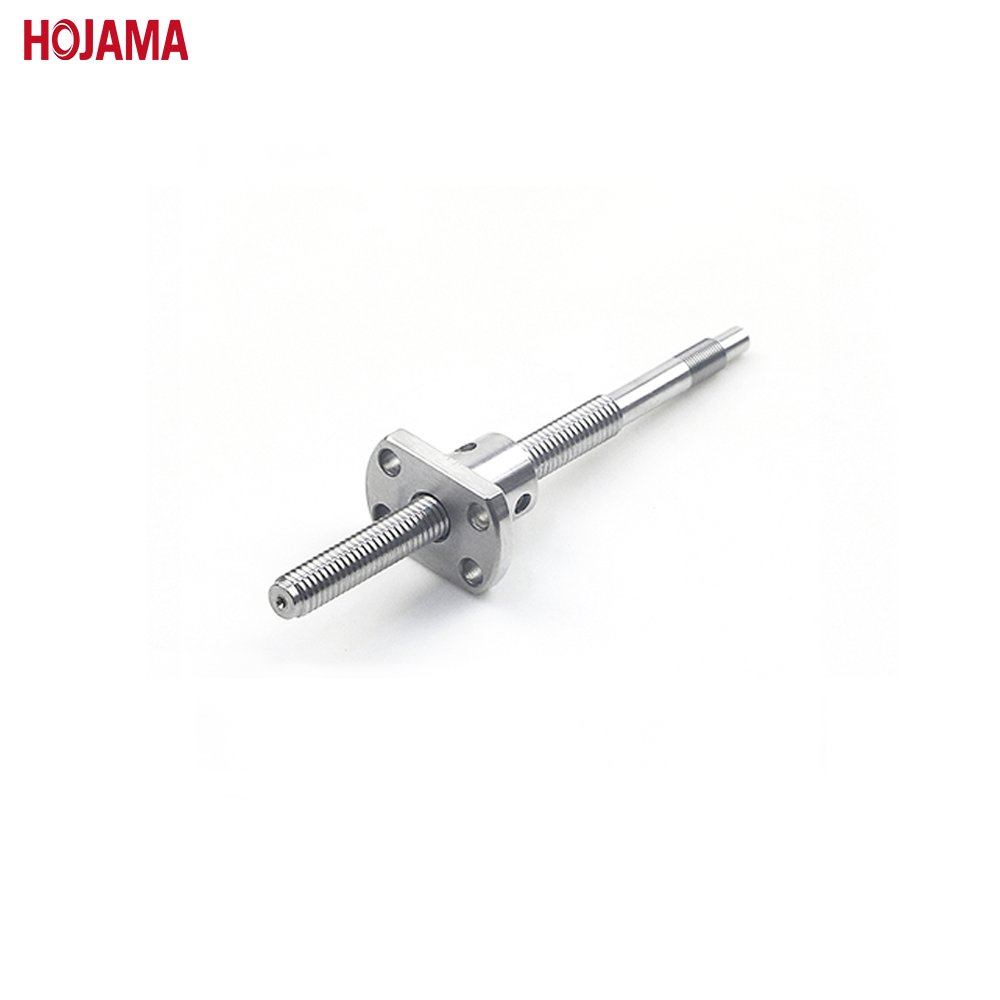

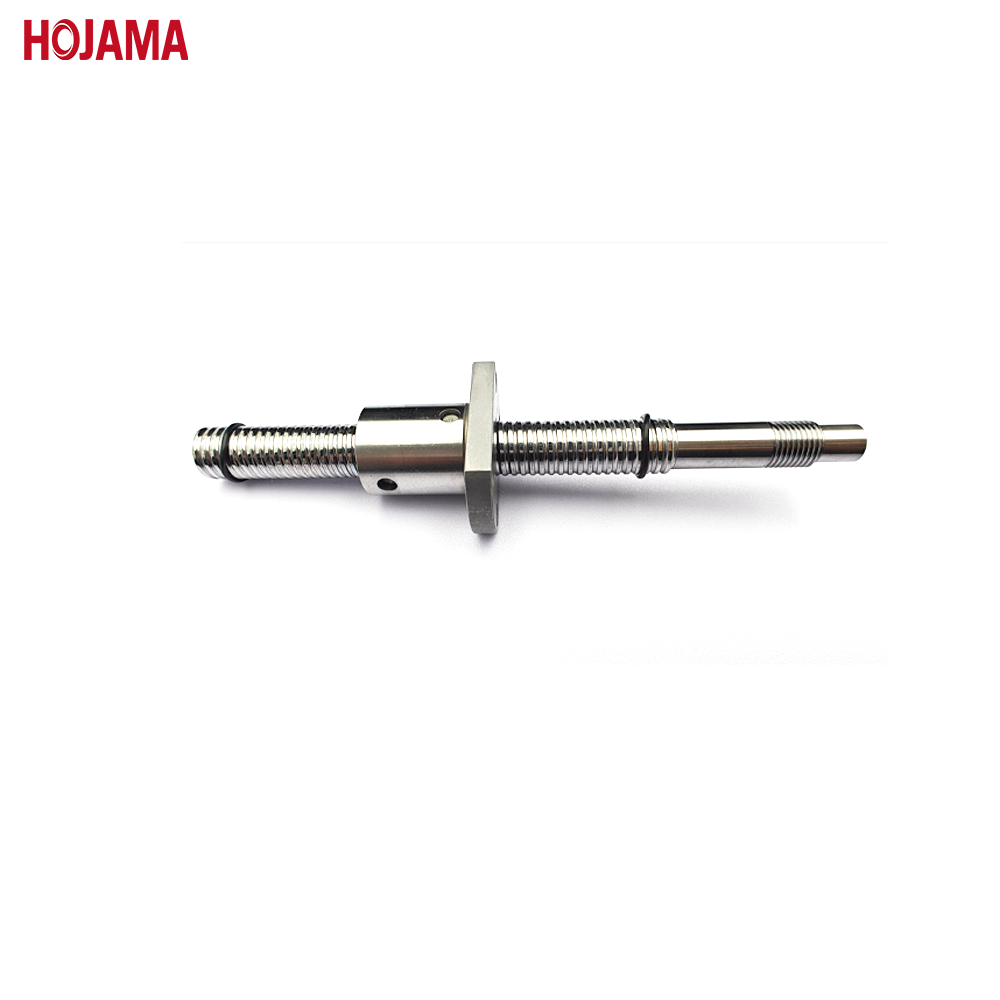

The MIF1403 ball screw, the 14mm Diameter Ball Screw, features the internal circulation: Floating deflector return.
Wide application of Miniature Ball Screws:
1. Aerospace:
Linear motion ball screws are used in precision control mechanisms for spacecraft, including actuators for satellite antennas and solar panels, where exact positioning is critical.
2. Medical Devices:
The high-Precision Ball Screws are essential in surgical robots and diagnostic imaging systems for movement control.
3. Robotics:
The ball screws and nuts are employed in linear actuators for robotic arms and manipulators, as well as in automation systems, to provide smooth, accurate motion and precise positioning.
4. Construction:
HOJAMA Ballscrews are integrated into automated machinery, equipment, and construction robots, enhancing precision, control, and accurate movement in construction applications.
Note:
1. The product price depends on the quantity and specifications of the product.
2. The product's delivery time depends on its specifications and the production schedule. （15-25 days）
3. HOJAMA is delighted to provide samples.
Product Categories : Miniature Ball Screws > 14mm Diameter Ball Screw
