Model No.: MIF1203
Brand: HOJAMA
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump
Processing Technology: Milled Thread
Place Of Origin: China
Packaging: Wooden box
Productivity: 30000 sets/month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 30000 sets/month
Certificate: ISO9001:2015
Port: Shanghai,Dalian,Zhoushan

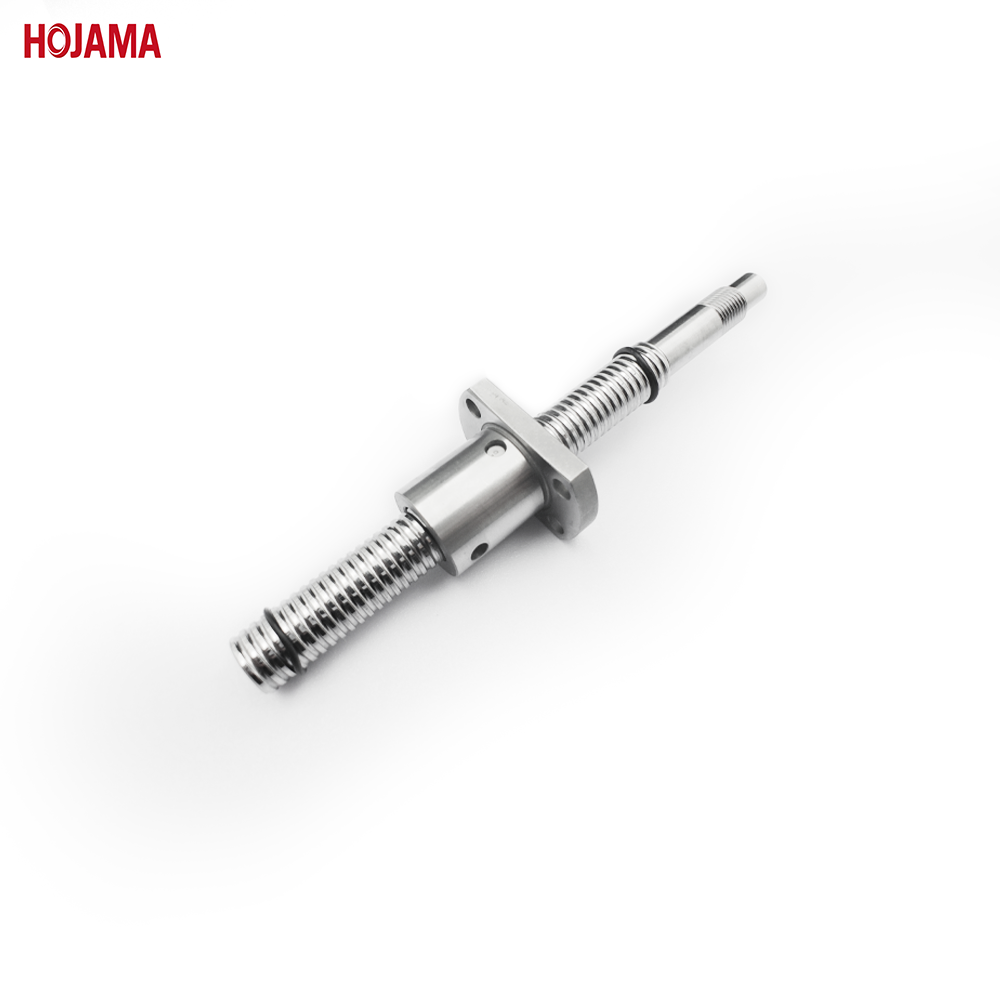

MIF1203: 12mm Diameter Ball Screw
A ball screw is a mechanical linear actuator consisting of a screw shaft and a nut, with balls rolling between the helical grooves inside the nut. The primary function of a ball screw is to convert rotational motion into linear motion. The ball nut transmits force to either fixed or dynamic loads, providing high accuracy, precision, and repeatability.
Ball screws are distinguished by their use of rolling balls within helical grooves, which minimizes mechanical contact within the screw assembly and replaces sliding friction with rolling friction. This design significantly reduces friction, resulting in efficient power transfer. The efficiency of a 1203 ball screw is evaluated based on its ability to convert rotational force into linear motion. HOJAMA ball screws can achieve efficiencies of 96% or higher.
Primary advantages of Miniature Ball Screws:
1. Smooth Running:
HOJAMA Ballscrews ensure smooth operation due to the rolling contact of balls between the screw shaft and the nut.
2. High Preload:
The ground mini ball screws can be preloaded to eliminate backlash, which significantly enhances positional accuracy and repeatability.
3. Low Noise:
The rolling motion of the balls results in lower noise levels compared to traditional sliding friction mechanisms.
4. High Rigidity:
The Recirculating Ball Screws offer high rigidity, which provides excellent control and stability under load.
Attention:
1) Removing the ball nut from the screw shaft causes the ball to fall out rendering the ball screw unusable.
2) Pricing is based on the quantity of the product and its specifications.
3) Lead time: 15-25 days
Product Categories : Miniature Ball Screws > 12mm Diameter Ball Screw
