Model No.: MEF1205
Brand: HOJAMA
Status: New
Warranty Period: 1.5 Years
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump
Processing Technology: Milled Thread
Place Of Origin: China
Packaging: Wooden box
Productivity: 30000 sets/month
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 30000 sets/month
Certificate: ISO9001:2015
Port: Shanghai,Dalian,Zhoushan

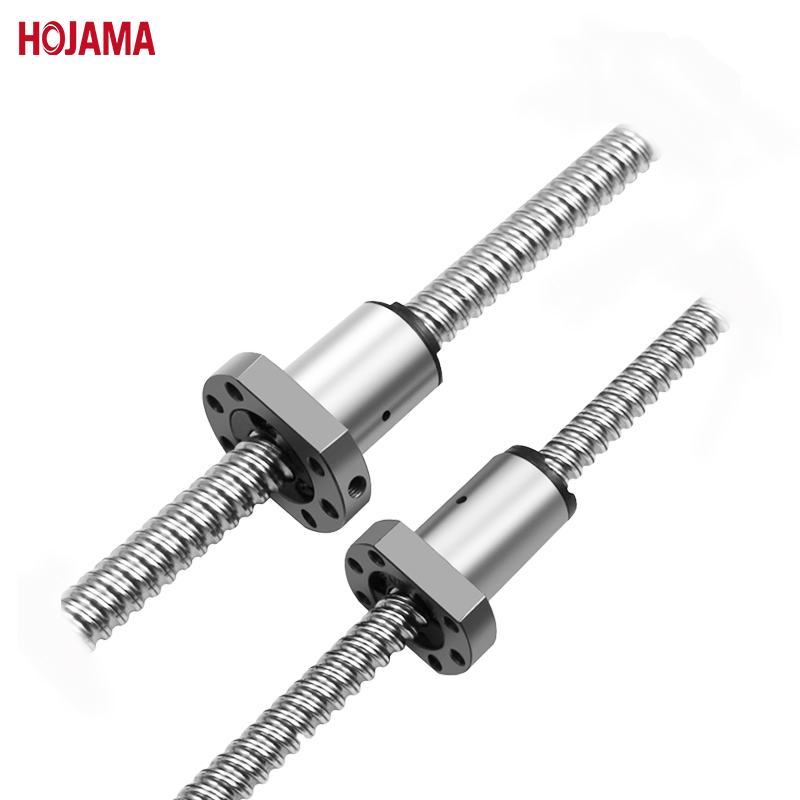

MEF1205: 12mm Diameter Ball Screw
Ball screw assemblies consist of a screw and a nut, each with matching helical grooves. Balls roll between these grooves, creating unique contact between the nut and screw. When the screw or nut rotates, balls are directed by a deflector into the nut's ball return system, circulating through it to the opposite end of the nut. The balls then exit the return system and re-enter the screw and nut threads to complete the loop.
End-cap Type Return System: This system involves balls rolling along the grooves between the screw shaft and nut, passing through holes on the nut via paths installed on end cover backers at both ends. It offers an enhanced scraping effect, improved rigidity, and high-speed functionality, making it ideal for high-speed, light-load, and low-noise designs.
Versatile Applications of Miniature Ball Screws:
1. Robotics:
Miniature ball screw provides precise movement and control in robotic systems.
2. Automation Assembly Line:
The ball screws and nuts enable accurate and efficient motion for automated assembly processes.
3. Machine Tools:
Ball screws ensure precise positioning and smooth operation of machine tools.
4. Precision Assembly Equipment:
The anti-backlash ball screw offers exact control for assembling high-precision components.
Note:
1. For specific product pricing, please contact HOJAMA.
2. The delivery time may vary depending on the complexity of the product. (15-25 days)
3. Please contact us to arrange for a sample after ordering.
