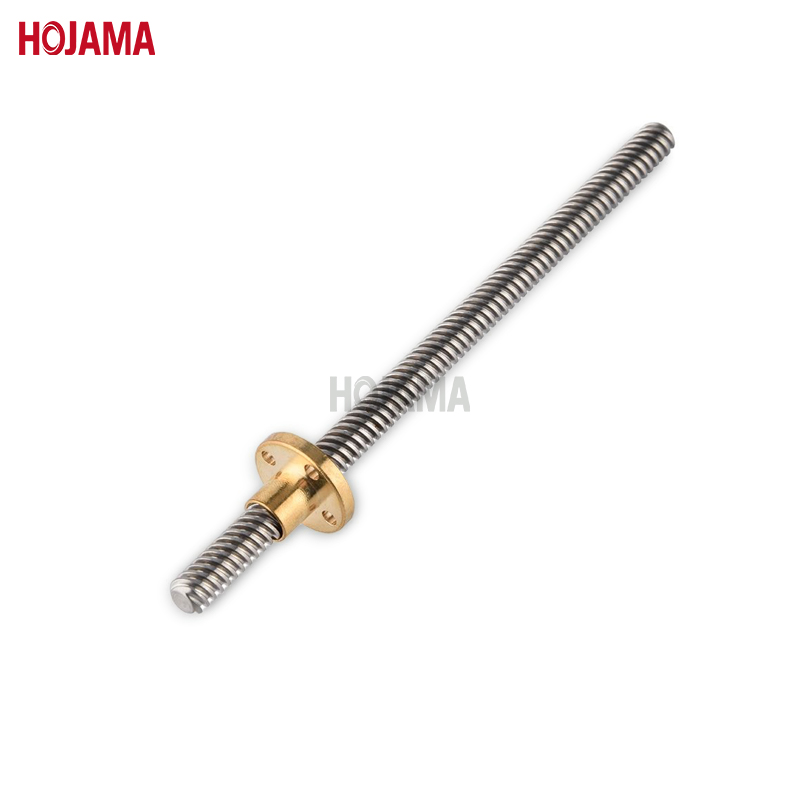

ACME 3/16 Lead Screw for CNC Machine

Basic Info

Model No.: ACME3/16-40

Brand: HOJAMA

Status: New

Species: Leadscrew

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, No Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

ACME Thread Screw belongs to the British imperial thread system, which is carried out by the American standard ANSI B1.5. It features a distinct 29° thread angle, differing from the tooth profile of common metric Trapezoidal Thread Screw. This unique tooth profile endows them with unique advantages in transmission applications. Thread sizes are denoted in imperial units. Common markings such as 1/4, 1/2, and 1/8 represent the diameters of the threads, with the unit being inches.

Advantages of Lead Screws with Acme thread:

1. Precise and Efficient Transmission

The ACME threaded lead screws can accurately convert rotational motion into linear motion. Their high-precision transmission is particularly crucial in industrial equipment and precision instruments.

2. Excellent Load-bearing Capacity

These acme thread lead screws are made of high-quality steel and undergo special processing. As a result, they exhibit outstanding strength and rigidity, allowing them to bear substantial axial and radial loads stably. And they also ensure the reliable operation of equipment, such as the feed systems of large machine tools and lifting platforms.

3. Smooth and Stable Movement

The acme lead screw pairs are meticulously designed and optimized. During operation, they feature low and uniform friction, effectively preventing jamming and vibration.
