6mm Customized Left and Right Hand Ball Screws

Basic Info

Model No.: MIF0601RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

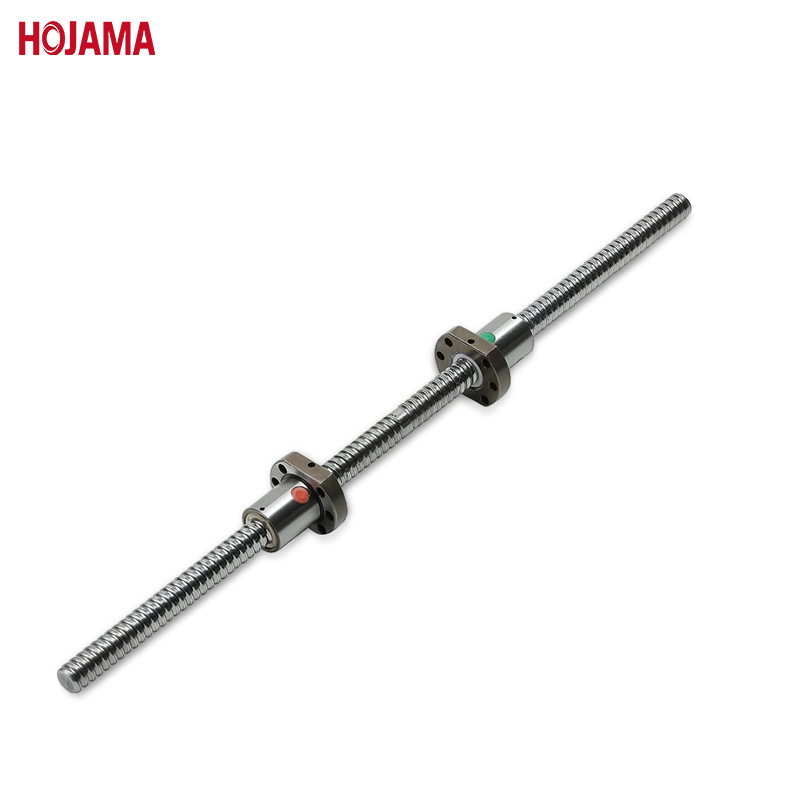

MIF0601RL——6mm bi-directional ball screw

Feature of this left and right hand ball screw:

Diameter: 6mm

Lead: 1mm

Equipped with 2 pieces of ball screw nuts

Customized end processing available

Precision Grade: C3/C5

Bi-directional ball screw assemblies enable two ball nuts to move in opposite directions with high precision, either towards both ends or converging to the middle simultaneously. They are highly efficient in converting rotary motion into linear motion, boasting an efficiency rate of approximately 90%.

These high-precision bi-directional ballscrews includes 4mm Diameter Bi-directional Ball Screw, 6mm Diameter Bi-directional Ball Screw, 8mm Diameter Bi-directional Ball Screw, 10mm Diameter Bi-directional Ball Screw, 12mm Diameter Bi-directional Ball Screw, 14mm Diameter Bi-directional Ball Screw, 16mm Diameter Bi-directional Ball Screw. We also provide customization support according to different needs.

Besides the ball screws, Hojama also offers Lead Screws , Ball Splines , Linear Guideways, and Linear Modules ... Come and contact us with the product drawing in PDF!
