Bi-directional Ball Screw with 0601 Square Nut

Basic Info

Model No.: MIS0601RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

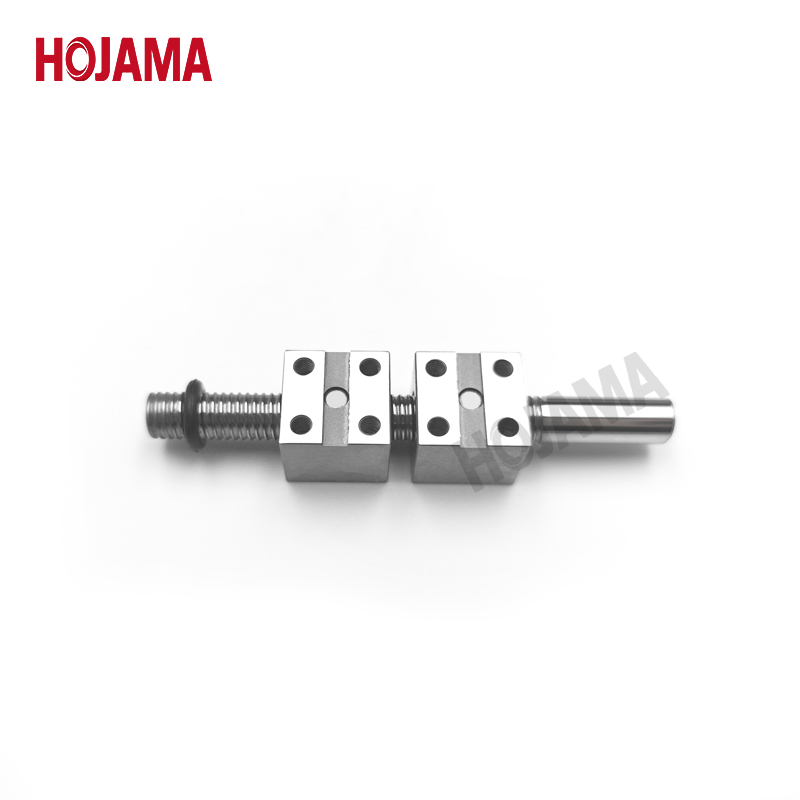

MIS0601RL: 6mm Diameter Bi-directional Ball Screw

A bi-directional ball screw is a mechanical device that can efficiently convert rotary motion into linear motion. It consists of a screw shaft, a nut, and several balls which circulate between the screw shaft and the nut through a ball-return system. Compare to the normal ball screws, ball screw with both left and right-hand threads is designed with the single screw shaft with two directions of helical grooves.

For this special two-nut ball screw, when the screw shaft rotates, the nut with left-hand thread will move clockwise along a certain axial direction as the nut with the right-hand thread will move counterclockwise along the corresponding axial direction. This unique design enables more complex and versatile linear motion control, allowing for simultaneous or sequential bidirectional movements.

Advantages of Bi-directional Ball Screws:

1. High Preload and Stiffness

Due to their structure, the bi-directional ball screws offer higher load capacity and stiffness, making them ideal for machinery that requires both significant loads and requires high positioning accuracy.

2. Precise Positioning

The double nut design effectively eliminates axial play through the relative axial displacement of the two nuts, enhancing the axial stiffness and positioning accuracy of the ballscrew.

3. Easy Maintenance

Double nut ball screw is more convenient to maintain, as the elimination of axial play simplifies maintenance tasks, contributing to a longer service life for the equipment.

4. Various Adjustment Methods

Double nut ballscrews can use different adjustment methods to eliminate play, such as shim adjustment, automatic spring adjustment, tooth gap adjustment, and threaded gap adjustment.

5. Cost-Effectiveness

Although the manufacturing cost of double nut ball screws is higher, their high efficiency and long lifespan provide better economic benefits in the long run.

For more details, please contact HOJAMA.
