Corrosion Resistance Linear Motion Ball Screw 50mm

Basic Info

Model No.: CBT5010-451-475-C3

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

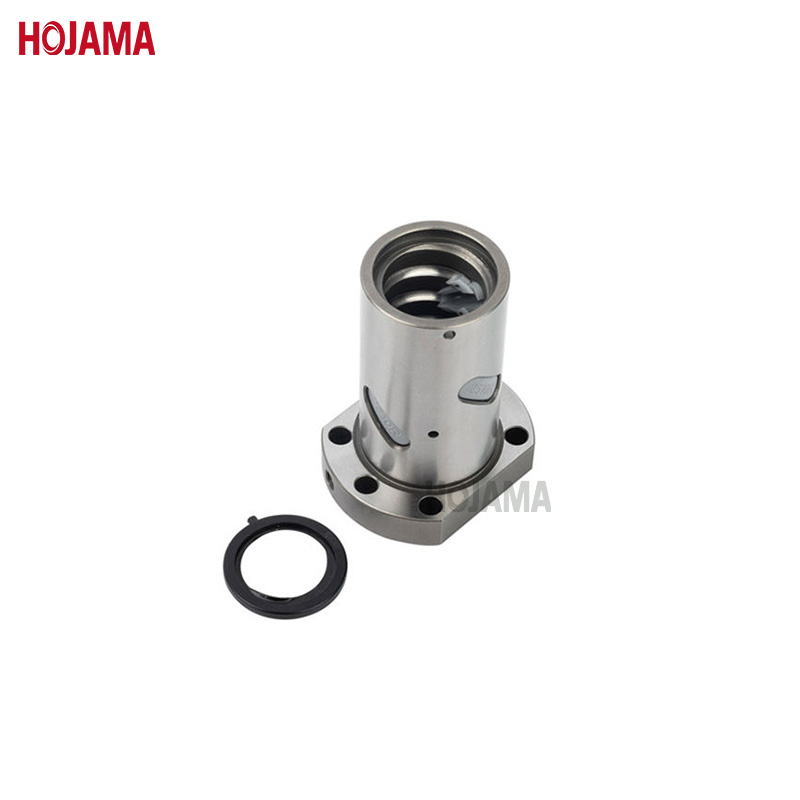

CBT5010-451-475-C3--50mm Diameter Ball Screw

Fixing Methods of Ball Screw:

1. One-end Fixed and One-end Free Mode

Suitable for occasions with small loads, generally used vertically.

A pair of angular contact bearings must be applied.

2. Two-ends Fixed Mode

1) Both sides of the structure are fixed. During use, the ball screw rod will generate heat, causing thermal elongation and deformation of the ball screw rod.

2) Angular contact bearings are used at both ends of the ball screw and ball nut.

3. One-end Fixed and One-end Supported Mode

1) One end is equipped with a pair of angular contact bearings, and the other end is equipped with a deep groove ball bearing, where the axial direction of the deep groove ball bearing is not limited.

2) The angular contact bearing part must be tightly fixed. Generally, the bearing cover and similar parts adopt a tolerance of +0.02 to compress the internal angular contact bearings.

3) The locking nut generally uses fine threads. In foreign equipment, a copper sheet is often added to the front end of the set screw to prevent the set screw from damaging the locking thread of the ball screw rod.

4. Fixed plus Fixed Mode

1) Used for long-distance applications, adopting the mode where the ball screw rod does not rotate and the nut rotates. It is less commonly used for lengths over 3 meters. Generally, it is used for 1m to 2m. For shorter distances, synchronous belts are preferred, and for over 3 meters, gear racks are preferred.

2) The tolerance of the ball screw assembly holes of the two bearing blocks in the height direction is ±0.02.

We are a professional machinery parts manufaturer, such as ball screws, Lead Screws, linear guides, Linear Modules and Ball Splines.
