C3 C5 Accuracy Grade Bi-directional Precision Ballscrew

Basic Info

Model No.: GIA1605RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

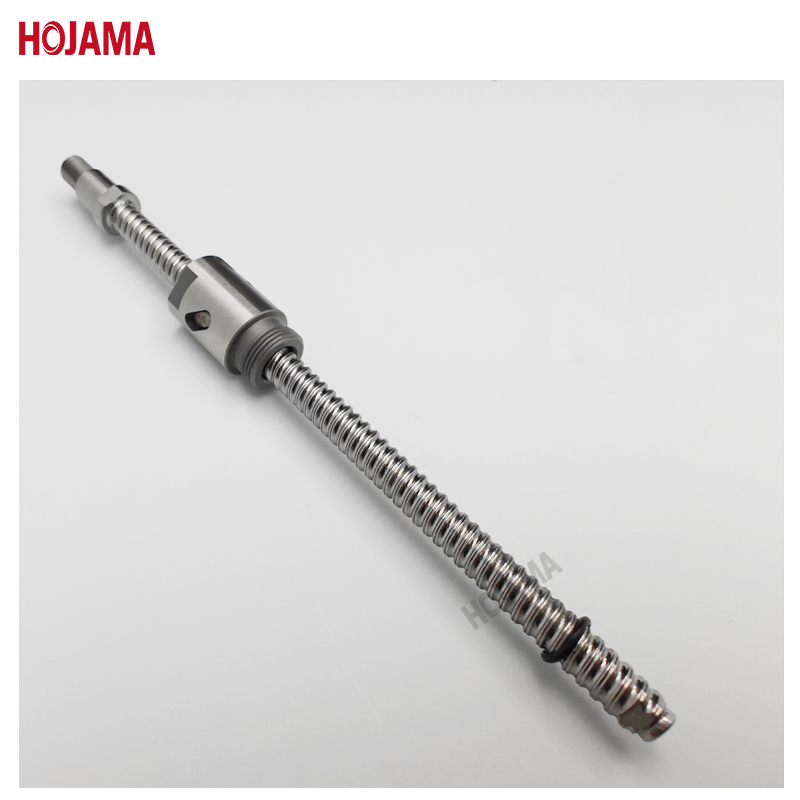

GIA1605RL——16mm Diameter Bi-directional Ball Screw

Our high-precision bi-directional ball screw is designed to meet diverse industrial equipment needs.

1. Material: Our anti-backlash ballscrew with metal nut is crafted from either GCr15 or 9Cr18, which is both wear-resistant and sturdy.

2. Product Types: We provide both standard and non-standard rotating ball nuts, catering to different application scenarios.

3. Accuracy Grade: With accuracy grades of C3 (offering extremely high precision) and C5 (striking a good balance between precision and cost-effectiveness), the left-hand and right-hand ball screw ensures outstanding linear accuracy and smooth movement.

4. Hardness: Its hardness, ranging from HRC58-62, ensures long-lasting durability under poor working conditions.

5. Structure: Comprising a screw shaft, nut, and steel balls, high-precision twin-lead ball screw efficiently converts rotational motion into linear motion with minimal friction.

6. Diameter: The diameter of the Bi-directional Ball Screws is available in the range of 4-16mm, making it suitable for small-scale and medium-scale machinery.

7. Lead: The lead can be chosen from 1-16mm; this way, it can meet specific speed and precision requirements in different applications.
