High Efficiency 16mm Bi-directional Ball Screw

Basic Info

Model No.: MIF1602RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

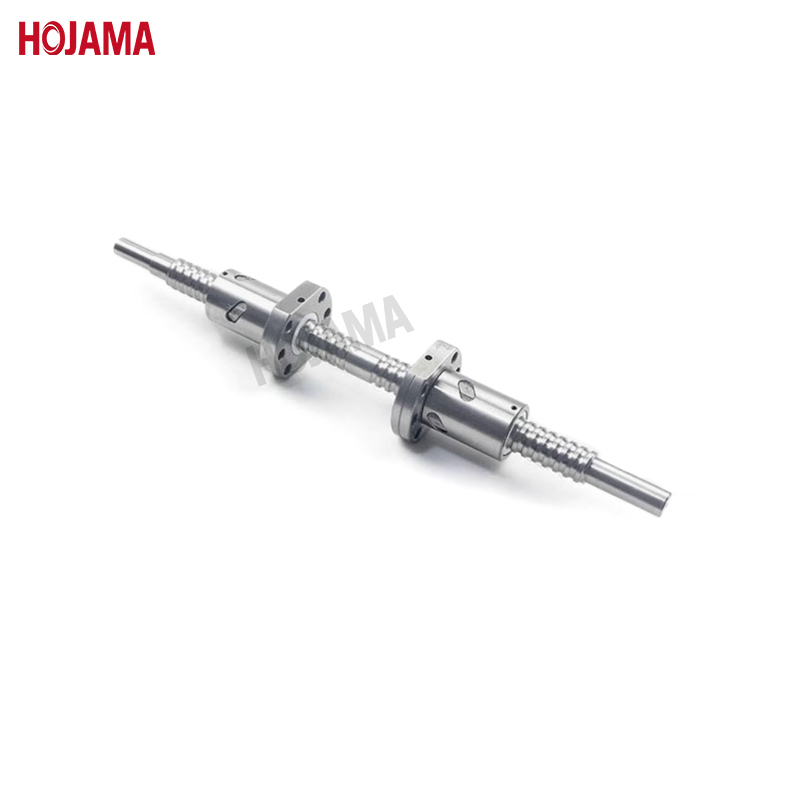

MIF1602RL——16mm Diameter Bi-directional Ball Screw

A precise bi-directional ball screw is fabricated with two threaded sections of opposite-handedness on a single screw shaft, including one right-hand threaded section and one left-hand threaded section. The right-hand and left-hand nuts threaded onto it are attached to moving mechanical components. As the high-speed bidirectional ball screw rotates, these two moving mechanical components will swiftly approach or separate by the movement of the ball nuts, fulfilling the desired mechanical functions.

Advantages of high-rigidity Bi-directional Ball Screws:

1. High-precision positioning

The friction coefficient between the balls and the raceways of the linear motion ball screw is low, and the transmission efficiency is high. As a result, precise displacement can be achieved with a relatively small driving force. Moreover, the backlash is extremely small, which can effectively avoid the lost motion error.

2. High load capacity

The steel balls of the bidirectional ball screws roll within the raceways, evenly distributing the axial load among multiple balls. Compared with traditional ball screws, this significantly improves the load-bearing capacity. Moreover, the special structure of the High Preload Cnc Ballscrew enables it to bear loads in two directions, enhancing its applicability.

3. High transmission efficiency (up to 96%)

The balls roll between the screw shaft and the nut. The rolling friction replaces the sliding friction, which greatly reduces the frictional force and thus improves the transmission efficiency.

To customers:

1. The actual price depends on the specific products.

2. Please send your product drawing (PDF) when you consult Hojama.
