XYZ Multi Axis Cnc 700mm Steel Linear Module

Basic Info

Model No.: ATH120-MD

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty Period: 1.5 Years

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Selling Point: High-Accuracy

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/Month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/Month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

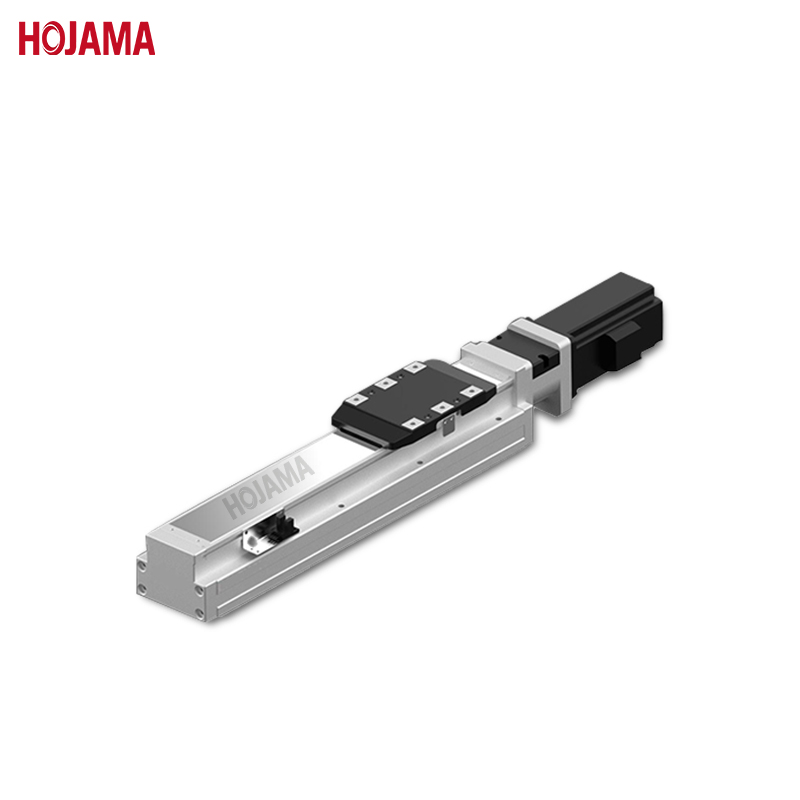

ATH120——120mm Embedded Linear Slide Modules

1. Performance and Precision

1) Enhanced Straightness: The ATH120 features a significantly improved equal-height straightness, ensuring smooth and accurate linear motion.

2）Long Stroke: With a maximum stroke length of up to 1250mm, our CNC Linear Modules can meet the requirements of various applications with different travel distances.

3)High Repeatability: The repeat accuracy of the 120mm linear module can reach up to ±0.005mm, providing high-precision motion control for demanding applications.

2. Drive System

Hojama high-performance linear module can be equipped with either a servo motor or a stepper motor drive, offering flexibility to match different application requirements and budget constraints.

3. Protection and Durability

1) Aluminum Cover Design: The aluminum cover protects the internal components from foreign objects, preventing them from being caught and causing malfunctions or safety hazards.

2)Sealed Dust-proof Structure: A specially designed high-strength and bend-resistant steel belt is used for a full-sealed dustproof structure, ensuring that it does not need to be replaced within 30,000 kilometers.

3)External Oil Nozzle and Oil Storage Circuit: An external oil nozzle and oil storage circuit are set up. One-time oil injection can directly reach the inside of the lead screw and guide rail, which helps to maintain smooth operation and extend the service life of the module.
