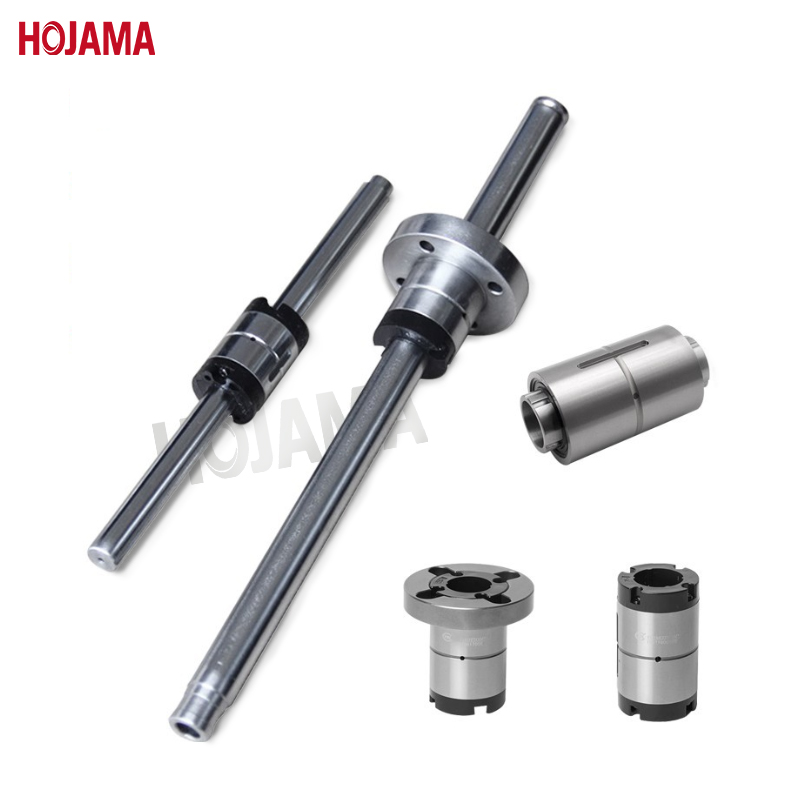

Hojama cylindrical Ball Splines are available in 6mm to 50mm diameters and have hollow or solid spline shafts. There are longitudinal keyways on the outer surface of the shaft. The rotating parts mounted on the shaft also have matching keyways, which enable them to rotate synchronously with the shaft. When rotating, some parts can slide along the shaft in the longitudinal direction.
Advantages of linear ball splines:
1. High Speed
The steel ball design in the ball splines leads to low friction in rotation, enabling adaptation to high speed, reducing energy loss, and maintaining stable performance in long-term high-speed operation.
2. High Preload Capacity
Compared to ordinary splines, the structure of the cylindrical ball splines allows the balls to bear a higher load, ensuring the safe and stable operation of the equipment even in bad conditions.
3. High Rigidity
The ball spline structure provides excellent rigid support, maintaining the shape and precision even when subjected to relatively large external forces.
4. High Sensitivity
The clearance between the steel balls and the raceway is minimal, and the rolling friction coefficient of the balls is very low; the ball spline can respond quickly to tiny motion commands and achieve precise coordinated work in complex motion control.
Tips:
1. The price on the page is for reference only, and the actual price depends on the product drawing you provide.
2. Hojama provides customization support. For more information, please consult with Hojama.
Product Categories : Ball Splines > 8mm Diameter Ball Spline
