High-Performance 40mm Rolling Ball Screw Assembly

Basic Info

Model No.: SFU4010-378-C7

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Rolled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

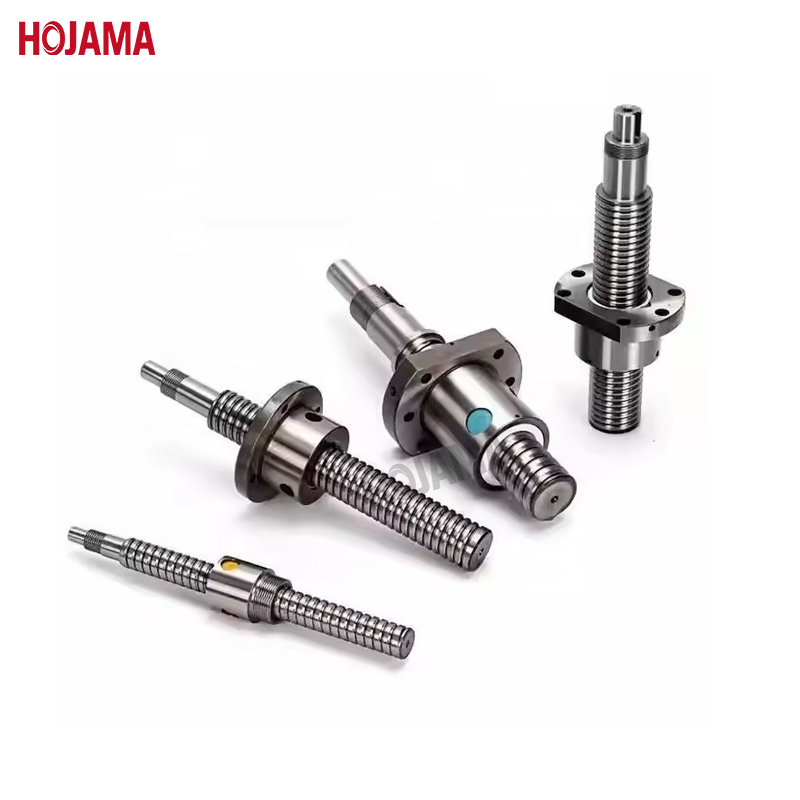

SFU4010-378-C7: High-rigidity 40mm Rolled Ball Screw

High-precision Ball screw kits turn a rotary motion into linear movement. The way they do this is by having little steel balls roll around in the spiral grooves of the screw shaft and the tracks of the ball nut. This rolling helps cut down on friction a lot, which makes the whole thing work more efficiently. When it comes to getting them moving, there are a few ways: you can have a motor drive the screw shaft directly, use a belt to carry the power over, set up a bunch of gears to pass the power along, or use a servo motor for really precise control. Picking which one to use depends on what you need—choosing right helps make sure it works efficiently and accurately.

This rolled ball screw has some good points. Its 40mm size means it can handle heavy loads without any trouble, which is great for tough, heavy jobs. It’s made to C7 accuracy standards, so it stays in the right position reliably—exactly what precision machines need. The design’s been worked on to make the switch from spinning to straight movement smooth and efficient, so it uses less energy. And since it’s made from high-quality materials like bearing steel and stainless steel, it doesn’t wear out easily and can last a long time.

You’ll find this high-precision rolled ball screw in places like CNC machining centers, automation systems, 3D printers, robots, and medical equipment. It works well in these spots because they need both precision and strength, which this linear motion ball screw provides. Also, Hojama has other ball screws too—Miniature Ball Screws, Precision Ball Screws, and left and right-hand ball screws. Besides ball screws, we’ve got things like linear guides, Ball Splines, Linear Modules, and Lead Screws. All these linear motion products can be customized to fit what you need, but you’ll need to send us a product drawing first. If you’re interested, send that drawing before you ask questions, and we can provide more professional suggestions on your product.

rolling ball screw
