20mm Diameter Noiseless Ball Screw with End Machining

Basic Info

Model No.: CBT2004-3

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

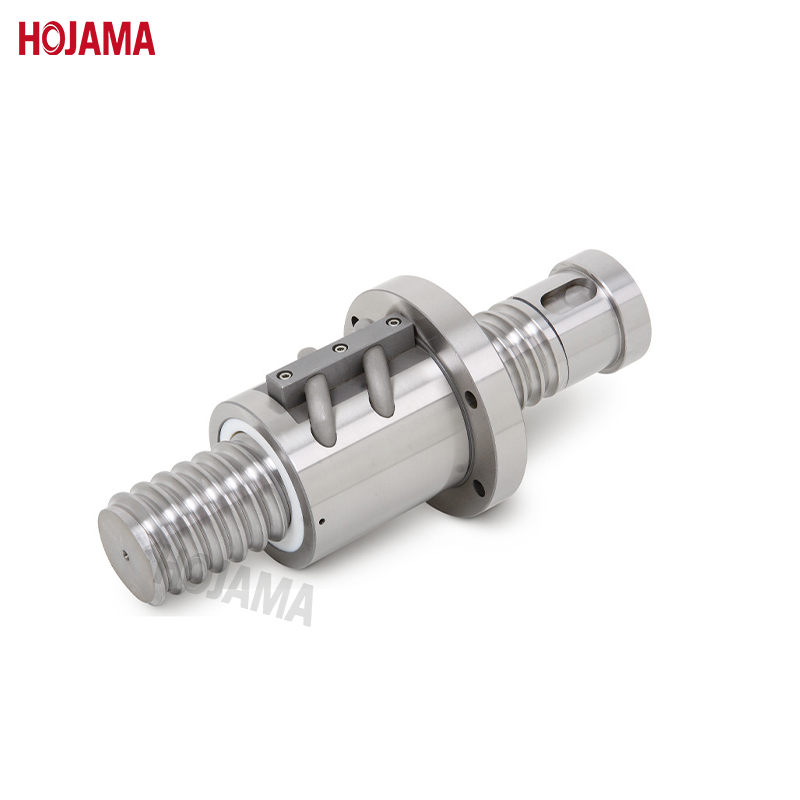

CBT2004-3——20mm Diameter Ball Screw

The ball screw thread is crafted through a precision grinding process. This results in a high-quality raceway surface for the steel balls within the ball nut to track along.

These high-precision ball screw assemblies can be subjected to shaft end machining and surface treatment, and customization is supported.

These Precision Ball Screws can be designed with c3 or c5 accuracy grade and c3 is a higher accuracy grade than c5.

Features of Precision Ball Screws:

1. Higher Efficiency:

When sliding friction is replaced by rolling friction, the efficiency exceeds up to 96%, and the driving torque is less than one-third of that of conventional linear screws.

2. Lesser Heat Generation:

Even under high loads, the heating is minimal, which leads to an improvement in the positioning accuracy of the high-rigidity ball screw kit.

3. Higher Service Life:

Owing to the rolling of balls in hardened grooves, very little wear occurs throughout the life cycle of the Ball Screws.

4. High Precision & Reliability:

These Precision Ball Screws are ground, assembled, and inspected under strict process and temperature control.

5. Precise Positioning:

High positioning accuracy can be achieved even at low speeds. With maximum axial stiffness, Our anti-corrosion ball screws can be easily adjusted to be backlash-free and pre-loaded, thereby increasing the axial stiffness, response, and repeatability of positioning.

In addition, Hojama can also provide Miniature Ball Screws, Rolled Ball Screws, and left/right-handed ball screws. Orders are welcome.
