C5 C7 Steel Ball Screw with Two Nuts

Basic Info

Model No.: MIF1402RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

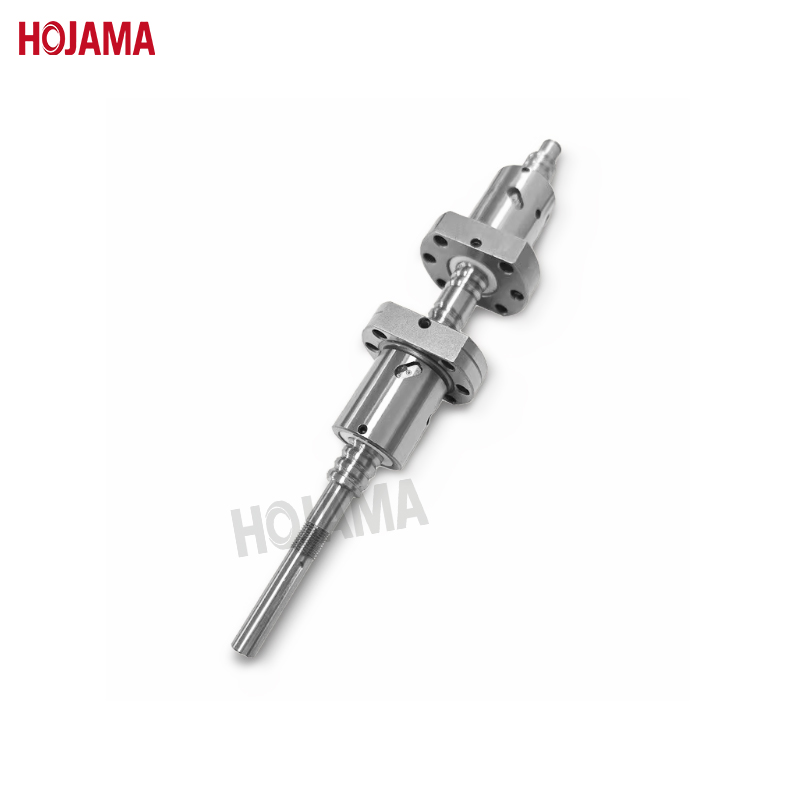

MIF1402RL——14mm Diameter Bi-directional Ball Screw

The bi-directional ball screw is a high-precision transmission device, which mainly consists of components such as the screw shaft, steel balls, ball nuts...

Features of left and right-hand thread ball screws:

1. Ball Diameter

In bidirectional ball screws, ball diameter is a key parameter. Larger balls provide a greater force-bearing surface area.

2. Ball Quantity

Bi-directional Ball Screws with dual nuts usually contain 5 to 60 balls. Increasing the number of balls enhances both load-bearing capacity and rigidity. However, the spacing between balls must be carefully considered.

3. Adjustable Length

Bidirectional ball screws are available in lengths ranging from 500mm to 3000mm. Moreover, we offer customizable lengths, allowing customers to select the most suitable option for their specific needs.

Tips:

1. The product price depends on the specific ball screws.

2. Please send hojama the product drawing in PDF at the beginning of the consultation.
