12mm Left and Right Hand Threaded Ball Screw

Basic Info

Model No.: MIF1201RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

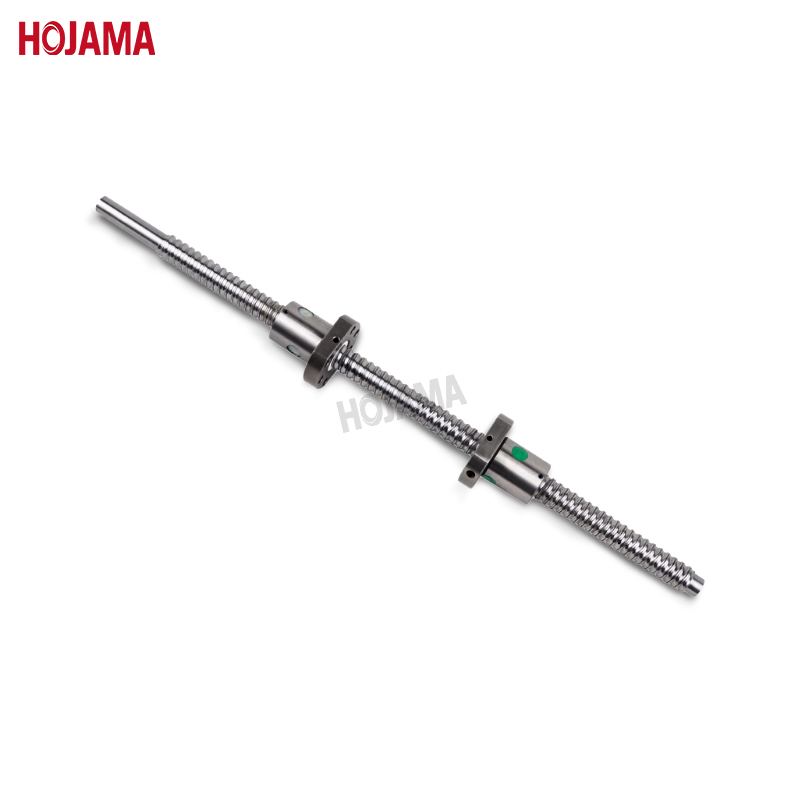

MIF1201RL——12mm Diameter Bi-directional Ball Screw

The left and right-hand ball screw, also known as the positive and negative threaded screw rod or the bidirectional screw rod, has a left-handed thread on one end and a right-handed thread on the other end. The two nuts on one rod can achieve simultaneous movement in opposite directions. This special thread design is crucial in many mechanical transmission and positioning application scenarios. For example, in some mechanical devices that require bidirectional synchronous adjustment or relative motion control, the left and right-handed screw rod shows excellent performance and applicability.

Features of Bi-directional Ball Screws:

1. Outside diameter of screw shaft:

The outside diameter of the bidirectional ball screw shaft is generally 6mm-100mm, and different diameters can be selected according to the different occasions and loads. The larger the outer diameter, the stronger its rigidity and load capacity.

2. Pitch:

Pitch is one of the important parameters of a bi-directional ball screw, which is mainly used to determine the thread length of each turn. The larger the pitch, the easier it is for the screw to rotate quickly, but the accuracy will decrease.

3. Lead:

The lead of the ball screws refers to the length of each spiral thread and generally refers to the number of rotations required by each thread. The larger the lead of the ball screw, the longer the thread per turn, and the higher the accuracy, but the input and output speed is slower.

Attention:

1. The price is for reference only, if you want to know the actual price, please consult Hojama.

2. We provide customized products according to your needs.

3. Remember to send your product drawing (PDF) when you contact.
