10mm Left and Right Rotation Ball Screw

Basic Info

Model No.: MIF1002RL

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

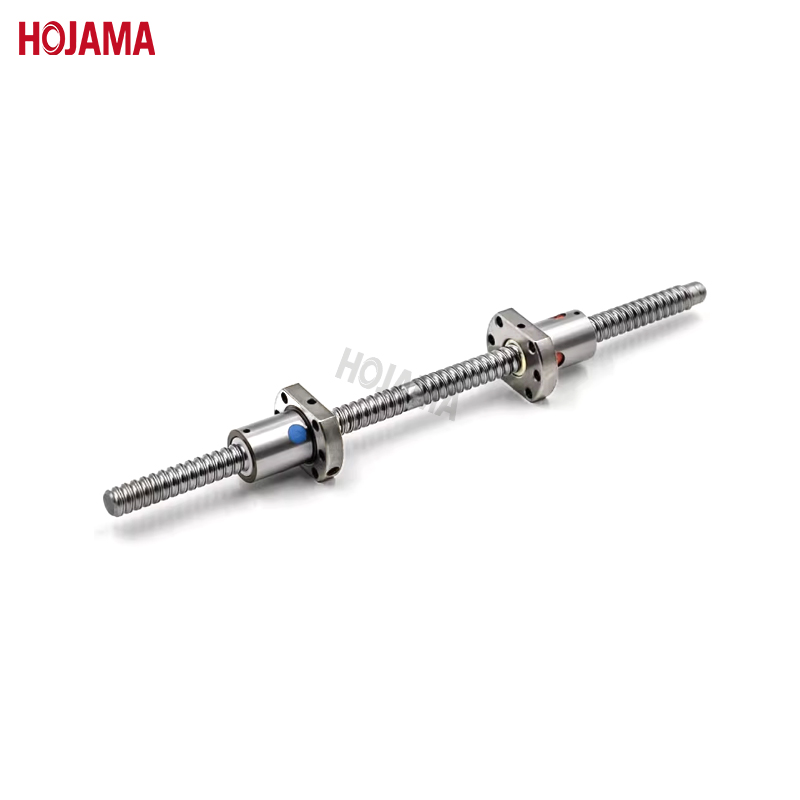

MIF1002RL——10mm Diameter Bi-directional Ball Screw

The Bi-directional Ball Screw is equipped with two ball nuts（It has both left-hand threads and right-hand threads). These particular assemblies prove to be highly economical. When the screw undergoes rotation, the two ball nuts move in opposite directions relative to one another.

Application of Hojama left and right-hand ball screws:

1. In Machine Tool Equipment

1) CNC Lathes

Since lathes need to precisely control the lateral (X-axis) and longitudinal (Z-axis) movements of the cutting tools during the machining process, ball screws with left-hand and right-hand threads can achieve synchronous bidirectional movements.

2) Machining Centers

Ground ball screws with left-hand and right-hand threads can be used to drive components such as rotating worktables or automatic tool-changing devices.

2. In Automated Production Lines

1) Material Conveying Systems

The positive and negative teeth screw can be used to drive bidirectional conveyor belts or material distribution devices.

2) Assembly Robots

The arm and wrist joint parts of assembly robots often use two-way ball screws to achieve flexible motion control.

3. In Aerospace Equipment

1) Aircraft Landing Gear Systems

Hojama two-way ball screws can provide reliable power transmission.

2) Satellite Antenna Adjustment Devices

The ball screws with 2 nuts can be used to drive the elevation and azimuth adjustment mechanisms of antennas.

Tips:

1. The prices of Bi-directional Ball Screws are for reference only, for the actual price please consult Hojama.
