Medium Torque Linear Ball Spline SLT010

Basic Info

Model No.: SLT010

Brand: HOJAMA

Place Of Origin: China

Status: New

Warranty: 1.5 years

Applicable Industry: CNC Machining Parts

Mechanical Test Report: Provided

Processing Technology: Grinding

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

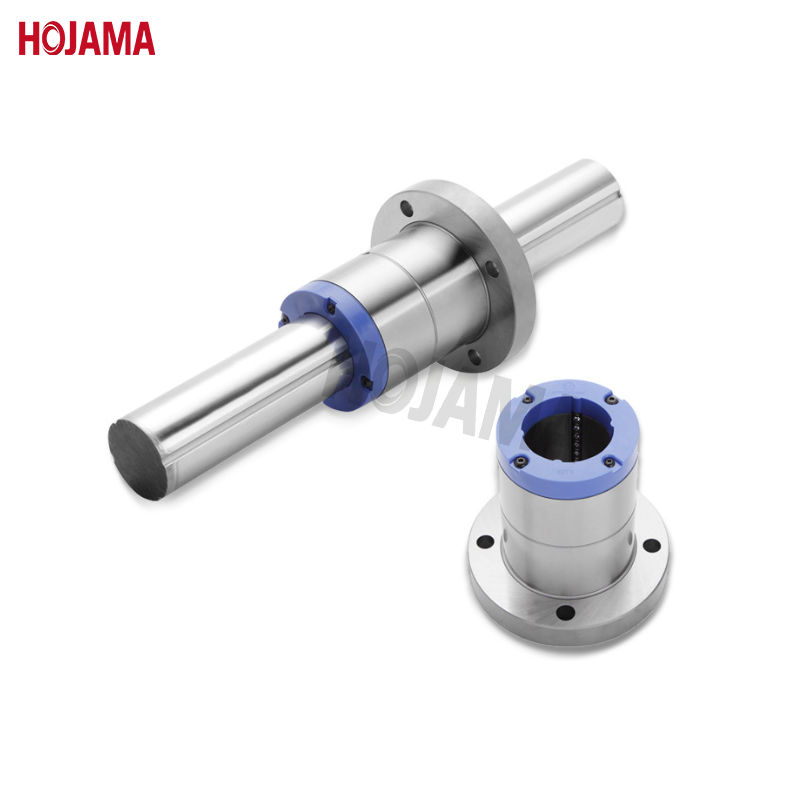

SLT010——10mm Diameter Ball Spline

As a linear motion component, the Ball Splines operate on the principle that the balls inside the spline outer tube roll along the grooves of the shaft to achieve linear motion and also can perform rotational motion.

Thanks to the use of the steel ball rolling contact method, friction, and power loss are effectively reduced, so it can operate at high speed and achieve highly accurate positioning. The spline outer tube is specially designed so that even if the spline shaft is pulled out, the balls will not fall off, which greatly facilitates the assembly, maintenance, and inspection procedures.

The SLT series has a powerful load-bearing capacity, excellent rigidity, and high sensitivity, and can significantly reduce energy consumption. The spline outer tube of the SLT series has a straight tube shape. When transmitting torque, it is operated by knocking in a key, and it is one of the types that require the smallest installation space among many types.

Hojama ball spline has rich experience accumulated from a decades-long manufacturing history of transmission products. Hojama ball spline includes the cylindrical SLT/SOT series, the round flange SLF series, and the square flange SOF series. In addition, Hojama ball spline also provides customized services. Welcome to consult with product drawings in PDF.

Moreover, you can also order the ball screws, linear guides, Linear Modules and ball splines in the Hojama.
