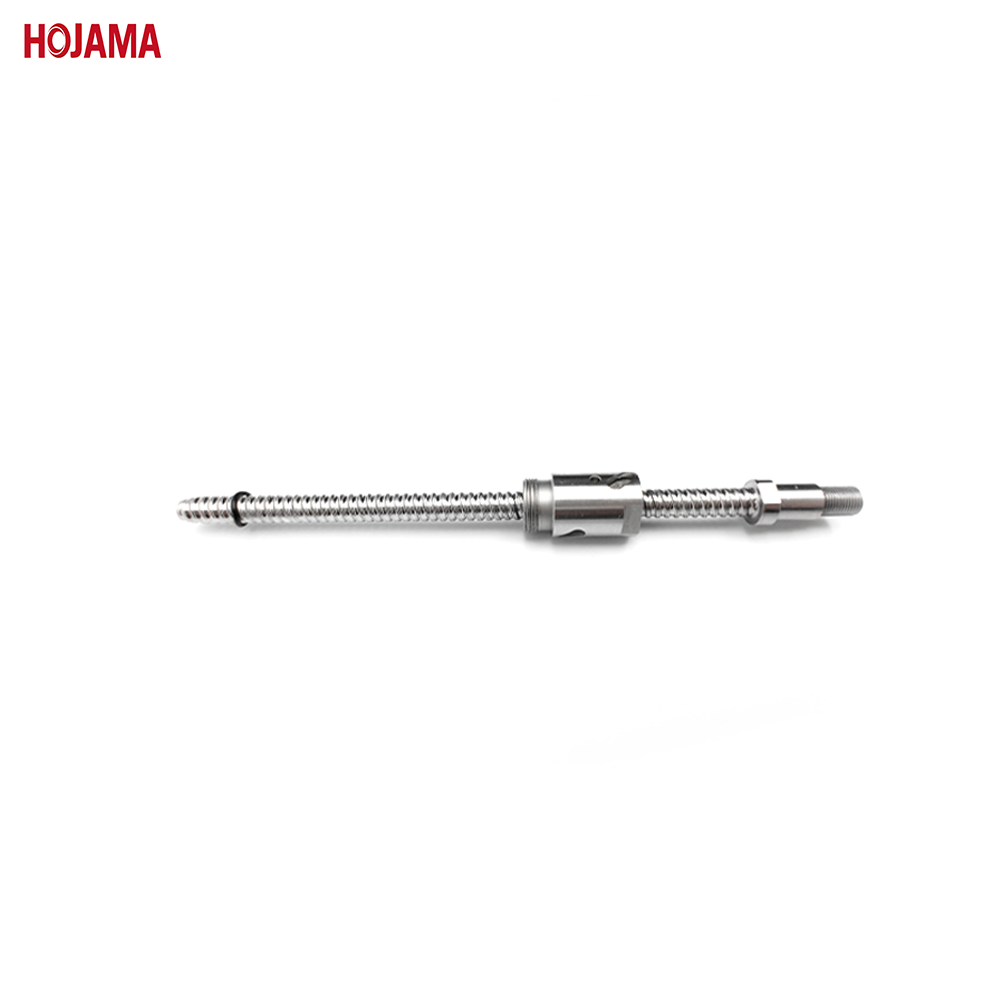

Diameter 10mm Lead 2mm Anti Backlash Ball Screw

Basic Info

Model No.: MIA1002

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Milled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Dalian,Zhoushan

Product Description

Ball screw assemblies are low-friction transmission components designed to convert rotational motion into linear motion. They are also used to transform torque into axial reciprocating force and are commonly found in hydraulic and pneumatic power transmission systems. These assemblies consist of a threaded screw shaft and a nut with steel balls. As the screw or nut rotates, balls roll between the helical grooves of the screw and nut. The system incorporates a ball recirculation mechanism that allows the balls to travel continuously along a sealed circuit with minimal internal friction.

MIA1002: 10mm Diameter Ball Screw

1. M: standard nut

2. I: internal deflector

3. A: round nut with triangular thread

4. Diameter: 10mm

5. Lead/Pitch: 2mm

6. Material: bearing steel or stainless steel

7. Accuracy Grade: C3/C5

Wide Application of Miniature Ball Screws:

1. electronic machinery robot

2. measuring instruments

3. medical equipment
