Rolled Thread Ball Screw SFU2510 CNC Machine

Basic Info

Model No.: SFU2510-4-570-655-C7

Brand: HOJAMA

Status: New

Warranty Period: 1.5 Years

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Processing Technology: Rolled Thread

Place Of Origin: China

Additional Info

Packaging: Wooden box

Productivity: 30000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 30000 sets/month

Certificate: ISO9001:2015

Port: Shanghai,Zhoushan,Dalian

Product Description

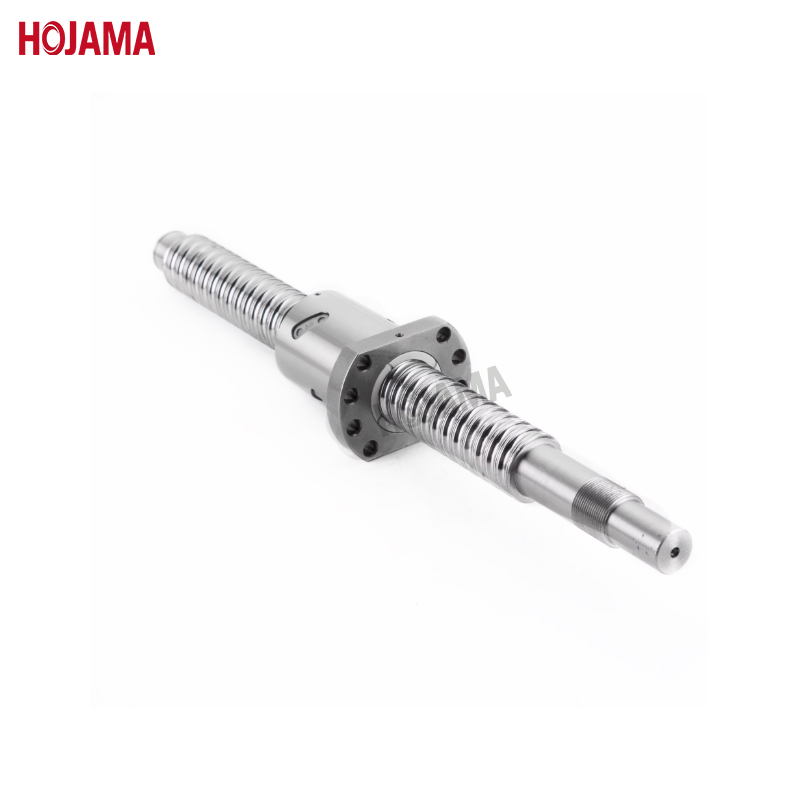

SFU2510-4-570-655-C7--25mm Diameter Rolled Ball Screw

The selection elements of ball screws are as follows:

1. Load Capacity

The load capacity is determined by the diameter, lead, material, and installation method of the ball screw. When selecting a ball screw kit, the appropriate load capacity should be chosen based on the maximum load of the equipment and the working environment. Generally, the larger the load capacity of the linear ball screw, the larger its diameter and lead will be, but the cost will also increase accordingly.

2. Accuracy Grade

The accuracy grade reflects the positional accuracy and repeated positioning accuracy of the ball screw assembly during transmission. Different accuracy grades of ball screw kits can be selected according to the accuracy requirements of the equipment. In general, the higher the accuracy grade of the ball screw pair, the higher its manufacturing cost.

3. Lead

The size of the lead determines the transmission speed and efficiency of the ball screw set. When selecting the lead, it should be determined according to the movement speed and accuracy requirements of the equipment. Typically, a larger lead results in a faster transmission speed, but accuracy may decrease; a smaller lead leads to a slower transmission speed, but accuracy is improved.

4. Installation Method

Different installation methods have an impact on the rigidity, stability, and service life of the ball screw. When selecting the installation method, it should be determined according to the structure and usage requirements of the equipment.

5. Lubrication Method

Common lubrication methods include grease lubrication and oil bath lubrication. When selecting the lubrication method, it should be determined based on factors such as the working environment, load, and speed of the equipment.

6. Protection Grade

When selecting a ball screw kit, the appropriate protection grade should be determined according to the usage environment and protection requirements of the equipment.

Besides the ball screw, we also can offer you Lead Screws, linear guides, linear mdules, and Ball Splines. Welcome to consult us.
